Trailer Hitch Replacement

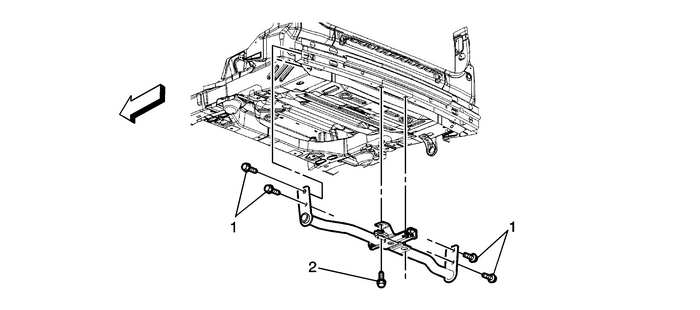

Callout

Component Name

Preliminary Procedure

Disconnect the trailer wire harness electrical connector.

Trailer Hitch Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

100-Y (74-lb-ft)

Trailer Hitch Bumper Bolt (Qty:-2)

Tighten

100-Y (74-lb-ft)
