Torque Converter Removal Automatic Transmission Unit

Torque Converter Removal

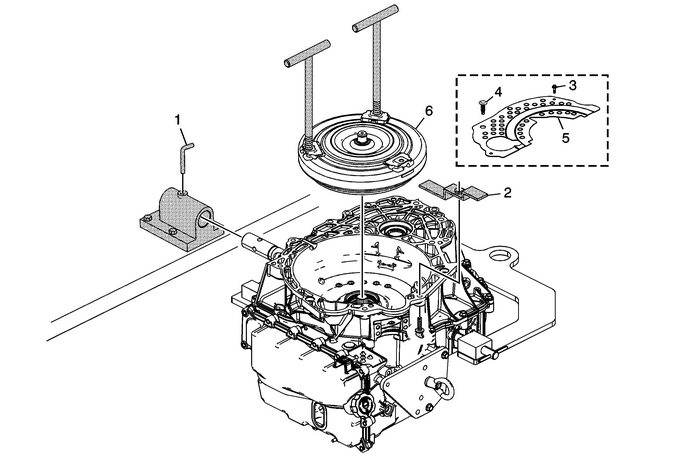

Callout

Component Name

1

Lock Pin

Warning:Lock pin must be secured into the bench fixture to hold thetransmission and prevent bodily injury.

Note:Ensure the DT 3289-20 holding fixture is mounted to a bench that is properly supported and will support the weight of thetransmission assembly without tipping. DT-39890 holding fixture adapter adapter and an engine stand can be used as an alternative method for supporting thetransmissionassembly during repairs.

Special ToolsDT 3289-20 Holding FixtureDT-39890 Transmission Holding Fixture Adapter

For equivalent regional tools, refer toSpecial Tools.

2

DT 21366 Converter Holding Strap

For equivalent regional tools, refer toSpecial Tools.

3

Dust Cover Bolts-M10-x-25, model dependent (Qty:-2)

4

Dust Cover Push Pin, model dependent

5

Dust Cover, model dependent

6

Torque Converter Assembly

Caution:Only install the lift assist handles until it stops. Do nottighten. Over tightening the lift assist handles can cause damageto the torque converter.

Note:Failure to raise the torque converter straight up could damage the torque converterclutch lip seal inside the torque converter clutch assembly.

Special Tools

DT 46409 Torque Converter Lifting Handles

For equivalent regional tools, refer toSpecial Tools.

Torque Converter Removal Automatic Transmission Unit
Torque Converter RemovalCalloutComponent Name1Lock PinWarning:Lock pin must be secured into the bench fixture to hold thetransmission and prevent bodily injury.Note:Ensure the DT-3289-20 holding fixtu ...
