Timing Chain Idler Sprocket Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

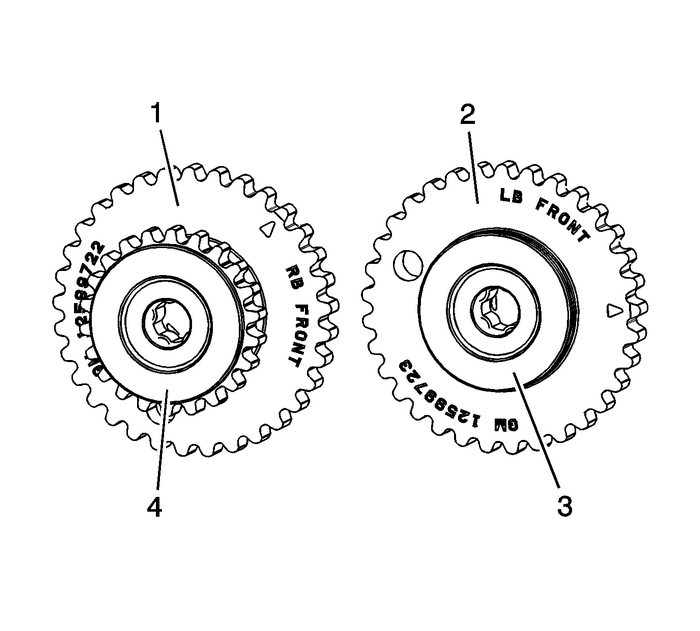

Ensure that the right camshaft intermediate drive chainidler-(1) is being installed. The recessedhub-(4) and the smaller sprocket of the right camshaftintermediate drive chain idler is installed outward. The raised huband the larger sprocket of the right camshaft intermediate drivechain idler is installed towards the block.

Timing Chain Idler Sprocket Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

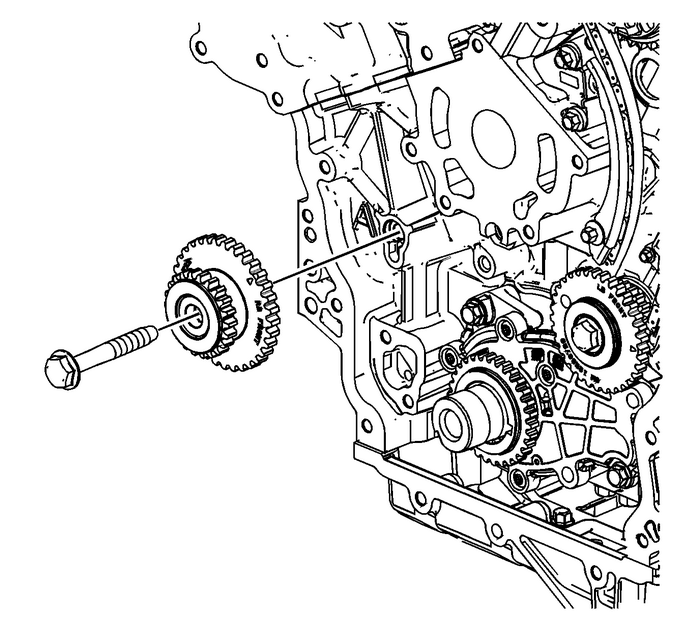

Install the right camshaft intermediate drive chainidler.

Caution:Refer toFastener Caution.

Install the camshaft intermediate drive chain idler bolt andtighten to58-Y(43-lb-ft).
