Tail Lamp Applique Replacement (Terrain) Lighting Exterior Lighting Tail Lamp

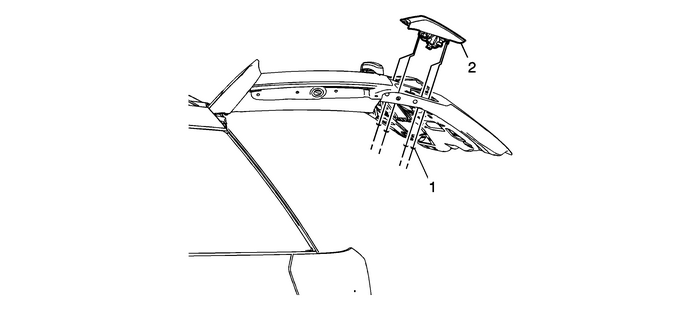

Tail Lamp Applique Replacement

Callout

Component Name

Preliminary ProceduresOpen and suitably support the rear liftgate.Remove the liftgate lower trim finish panel. Refer toLiftgate Lower Trim Finish Panel Replacement.

1

Tail Lamp Applique Nut (Qty:-5)

Warning:When working with any type of glass or sheet metal withexposed or rough edges, wear approved safety glasses and gloves inorder to reduce the chance of personal injury.

Procedure

Disconnect the tail lamp harness connector from the liftgatemain electrical harness.

2

Tail Lamp Applique Assembly

Tip:Replace the tail lamp applique as an assembly.
