Stop and Turn Signal Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Turn Signal and Hazard Lamps

Stop and Turn Signal Lamp Bulb Replacement

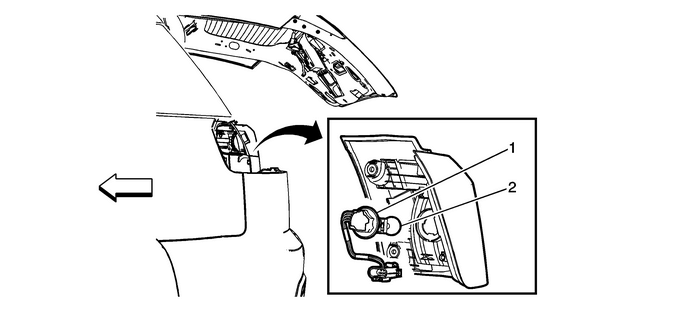

Callout

Component Name

Preliminary Procedure

Remove either the left or right tail lamp assembly. Refer toTail Lamp Replacement.

1

Stop and Turn Signal Bulb Socket

Warning:Refer toHalogen Bulb Warning.

Procedure

Disengage the stop and turn signal lamp bulb socket from thelamp assembly by turning the socket counterclockwise a quarterturn.

2

Stop and Turn Signal Lamp Bulb
