Stop and Turn Signal Lamp Bulb Replacement Lighting Exterior Lighting Turn Signal and Hazard Lamps

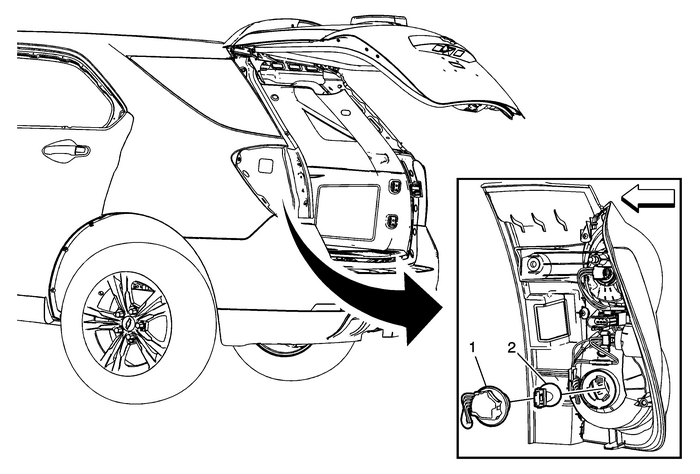

Stop and Turn Signal Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove either the Left or Right tail lamp assembly. Refer toTail Lamp Replacement.

1

Stop Turn Signal Lamp Bulb Socket

Warning:Refer toHalogen Bulb Warning.

ProcedureDisengage the bulb socket from the lamp assembly by turningthe socket counterclockwise a quarter turn.Remove the bulb from the socket.

2

Stop Turn Signal Lamp Bulb

Stop and Turn Signal Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Turn Signal and Hazard Lamps
