Steering Wheel Horn Contact Replacement Steering Wheel and Column

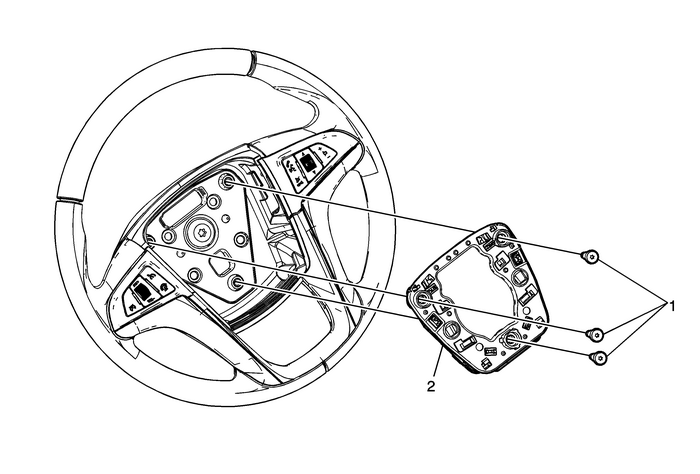

Steering Wheel Horn Contact Replacement

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.

1

Steering Wheel Horn Contact Bolt/Screw(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

8-Y(71-lb-in)

2

Steering Wheel Horn Contact

Procedure

Disconnect electrical connectors as needed.
