Chevrolet Equinox Service Manual: Special Tools Wheels

Illustration

Tool Number/ Description

Special Tools Wheels

CH-48894

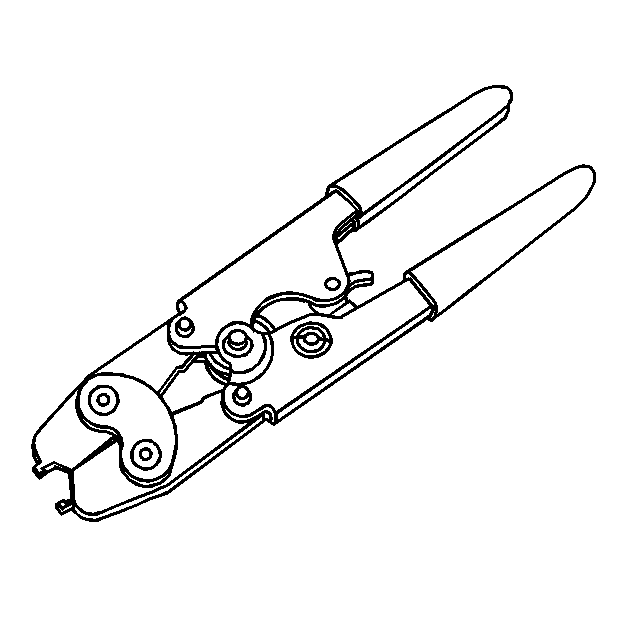

Wheel Drive Shaft Clamping Pliers

Special Tools Wheels

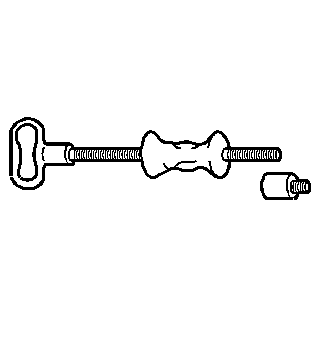

J-2619-01

Slide Hammer

Special Tools Wheels

J-24319-B

Steering Linkage and Tie Rod Puller

Special Tools Wheels

J-35910

Drive Axle Seal Clamp Pliers

Special Tools Wheels

J-42129

DT-50188

CH-49400

DT-42129

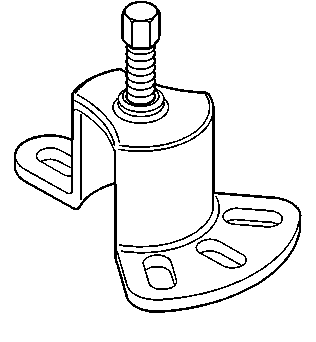

Wheel Hub Puller

Special Tools Wheels

J-43828

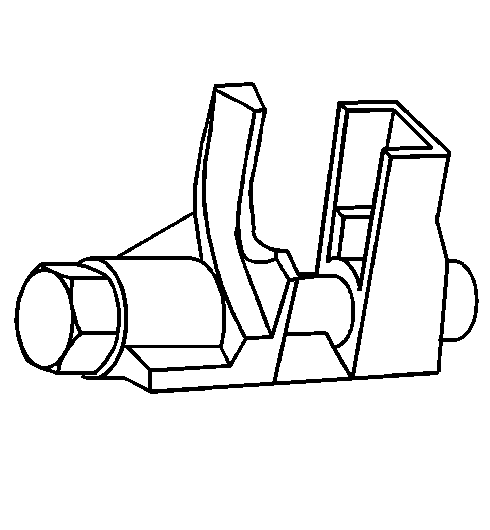

Ball Joint Separator

Special Tools Wheels

J-44015

Steering Linkage Installer

Special Tools Wheels

J-44394-A

Seal Protector

Special Tools Wheels

J-44467

Output Shaft Assembly Remover and Installer

Special Tools Wheels

J-44809

Seal Installer

Special Tools Wheels

J-45341

Rear Wheel Drive Shaft Removal Tool

Special Tools Wheels
