Chevrolet Equinox Service Manual: Special Tools Disc Brakes

Chevrolet Equinox Service Manual / Chassis / Brakes / Special Tools Disc Brakes

Illustration

Tool Number/ Description

Special Tools Disc Brakes

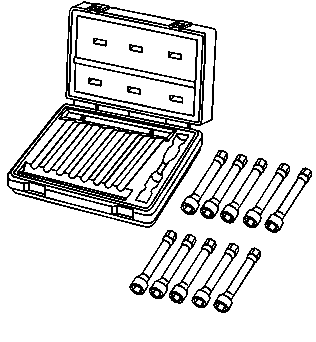

J-39544-KIT

Complete Torque Socket Set –10-Pieces

Special Tools Disc Brakes

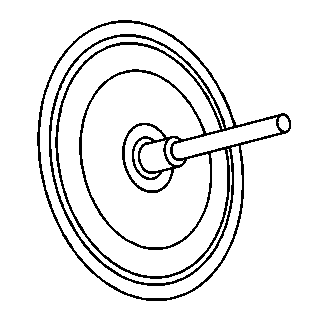

J-41013

Rotor Resurfacing Kit

Special Tools Disc Brakes

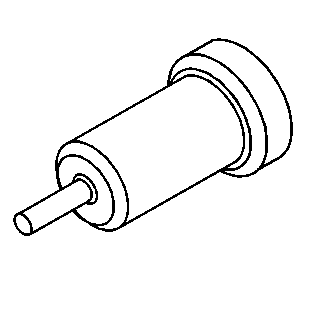

J-42450-A

Wheel Hub Resurfacing Kit

Special Tools Disc Brakes

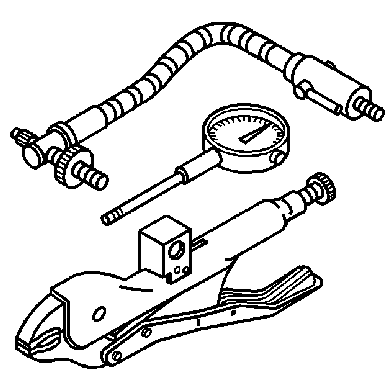

J-45101

Hub and Wheel Runout Gauge

Special Tools Disc Brakes

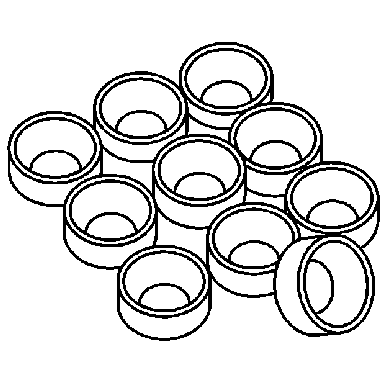

J-45101-100

Conical Brake Rotor Washers
