Chevrolet Equinox manuals

Chevrolet Equinox Service Manual: Special Tools

Illustration

Tool Number/Description

Special Tools

CH-25033-C

J-25033-C

Pulley Installer

Special Tools

CH-25034-C

J-25034-C

Pulley Remover

Special Tools

CH-45722

J-45722

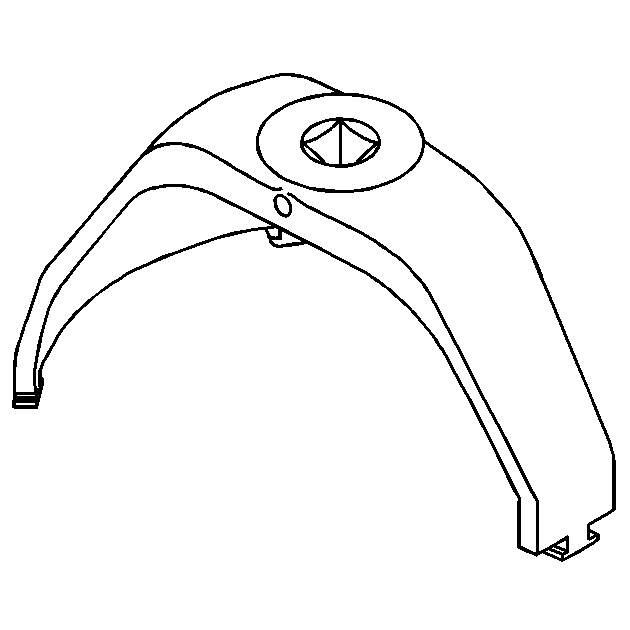

Fuel Sender Lock Ring Wrench

Special Tools

CH-48027

DW 100-010

EN 49495

J-21867

Digital Pressure Gauge

South America Use Local Equivalent

Special Tools

CH-48482

Fuel Sender Lock Ring Wrench

Special Tools

DT-5590

J-5590

J-24254

Bearing and Seal Driver

Special Tools

DT-23129

J-23129

KM-586

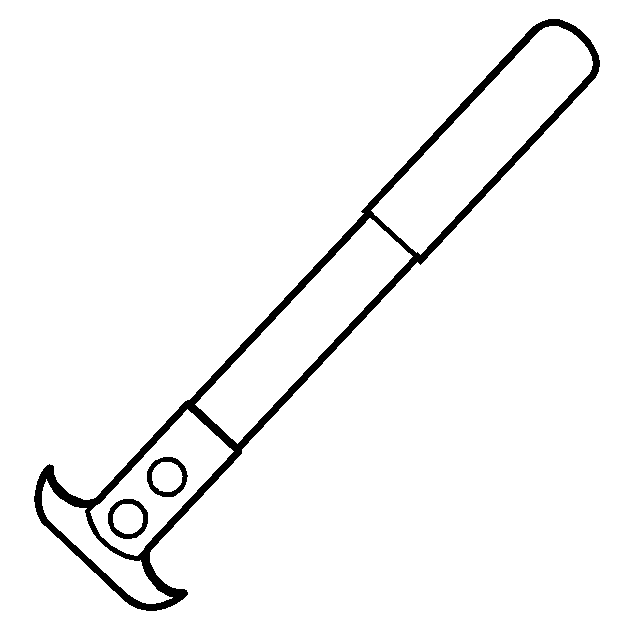

Universal Seal Remover

Special Tools

DW 110-030

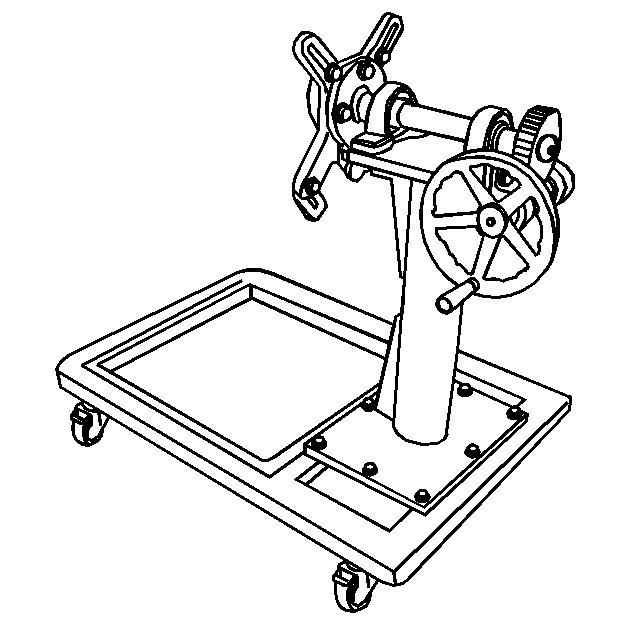

Engine Overhaul Stand

Special Tools

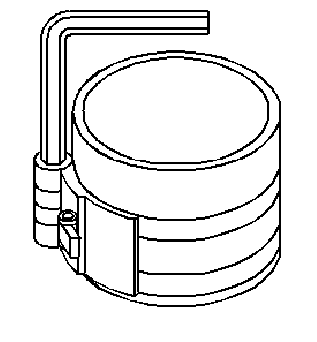

EN-8037

J-8037

Ring Compressor

South America Use Local Equivalent

Special Tools

EN-8062

J-8062

7-0006798

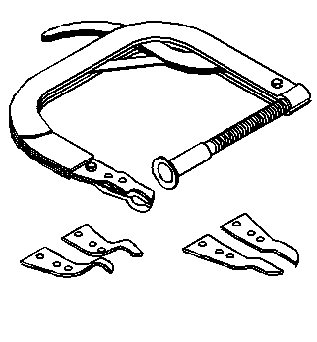

Valve Spring Compressor - Head Off

Special Tools

EN-8087

J-8087

Cylinder Bore Gauge

South America Use Local Equivalent

Special Tools

EN-21867-6

J-21867-6

83-93-852

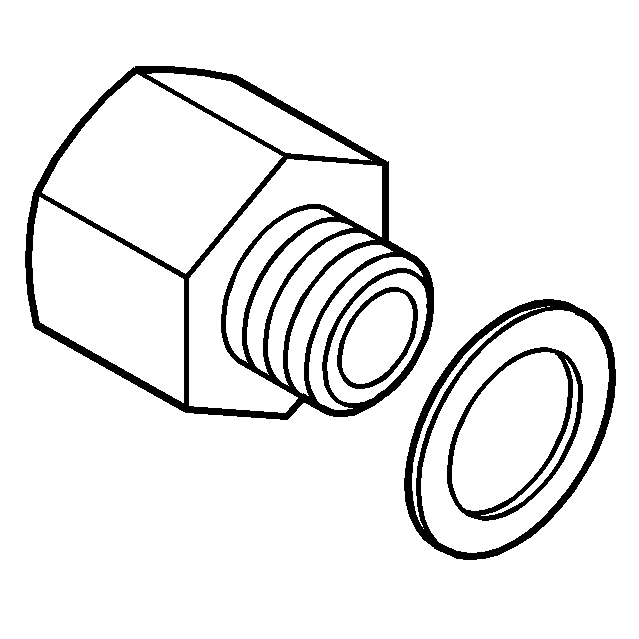

Oil Pressure Adapter Fitting

South America Use Local Equivalent

Special Tools

EN-22738-B

J-22738-B

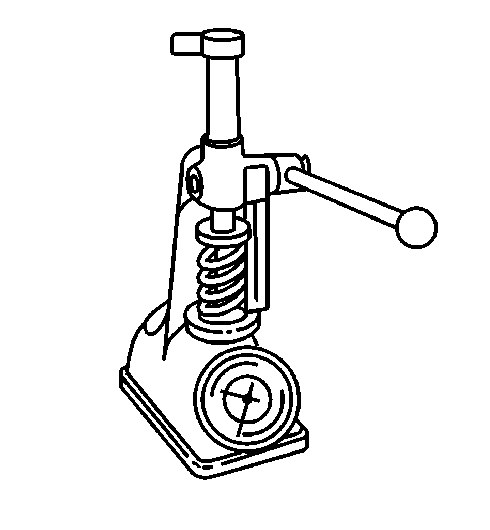

Valve Spring Tester

South America Use Local Equivalent

Special Tools

EN-24254-A

J-24254-A

J-24254

Oil Seal Installer

Special Tools

EN-28410

J-28410

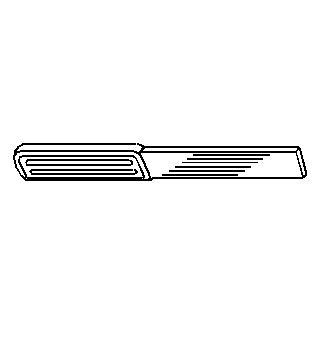

Gasket Remover

South America Use Local Equivalent

Special Tools

EN-28467-B

DW 110-060

J-28467-B

X-0206951

L-0906004

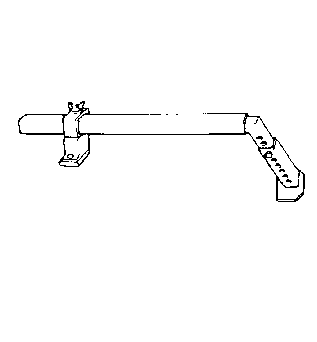

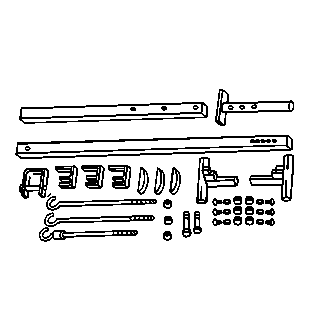

Universal Engine Support Fixture

Special Tools

EN-28467-501

J-28467-501

Engine Support Fixture Adapters

Special Tools

EN-29184

EN-47635 & J-41998–B

EN-47635

J-29184

V-0506019

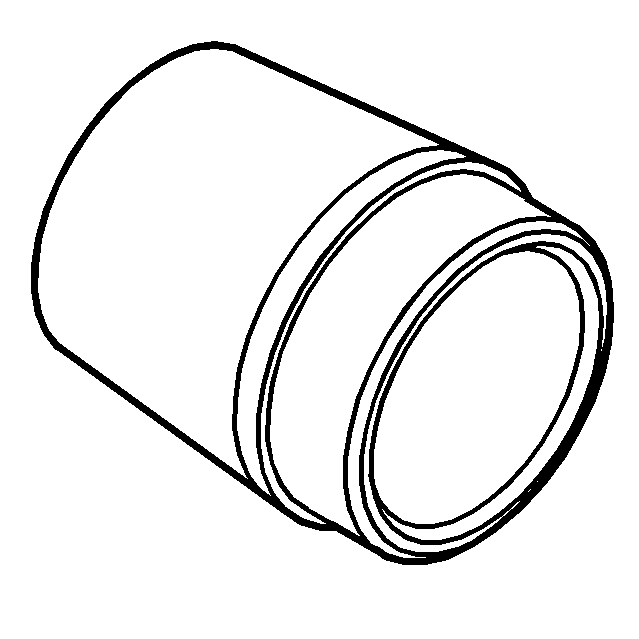

Oil Seal Installer

Special Tools

EN-35667-A

J-35667-A

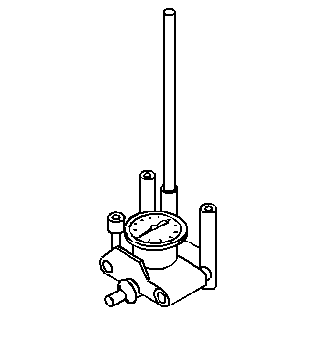

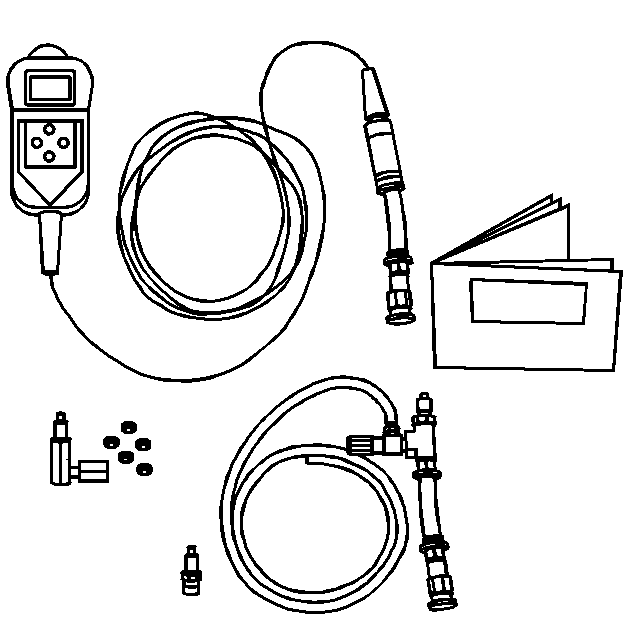

Cylinder Head Leakdown Tester

South America Use Local Equivalent

Special Tools

EN-36462-A

J-36462-A

X-0206951

L-0906004

Engine Support Adapter Leg

Special Tools

EN-36857

J-36857

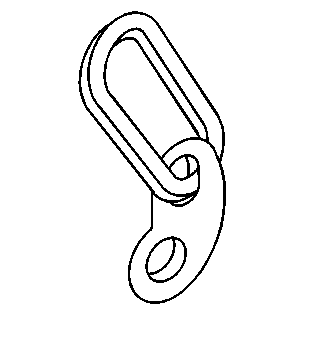

Engine Lift Bracket

Special Tools

EN-38416-2

J-38416-2

6-9806636

Crankshaft Button

Special Tools

EN-39313

J-39313

V-0506023

Spark Plug Port Adapter

Special Tools

EN-41712

J-41712

Oil Pressure Switch Socket

South America Use Local Equivalent

Special Tools

EN-41816

J-41816

6-9806636

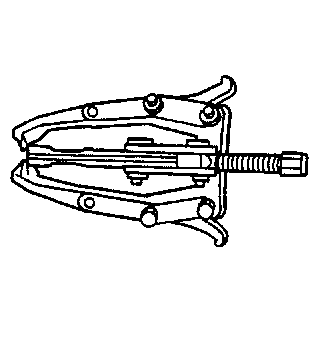

Crankshaft Balancer Remover

Special Tools

EN-41998-B

J-41998-B

J-41998

Crankshaft Balancer Installer

South America Use Local Equivalent

Special Tools

EN-42096

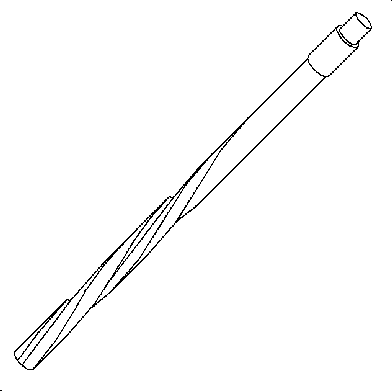

Valve Guide Reamer

Special Tools

EN-42183

J-42183

M-840911-A

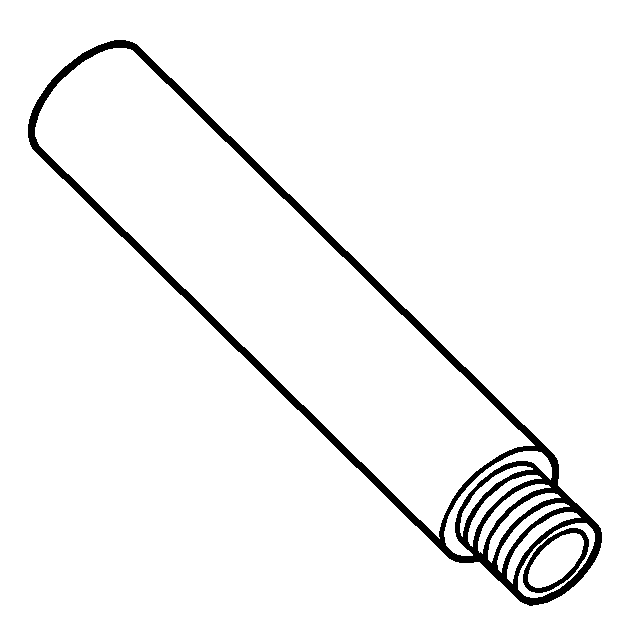

Driver Handle

Special Tools

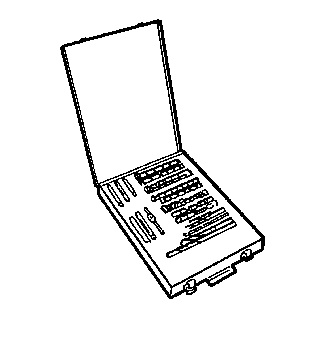

EN-42385-700

J-42385-700

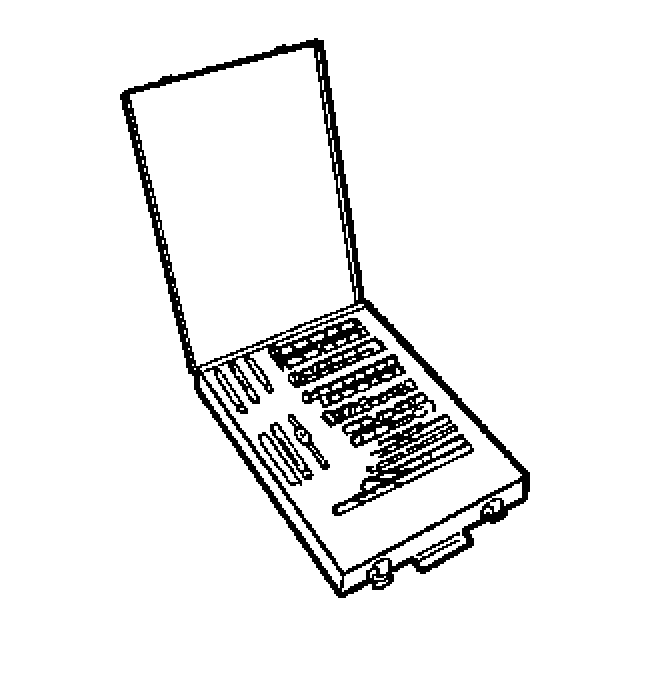

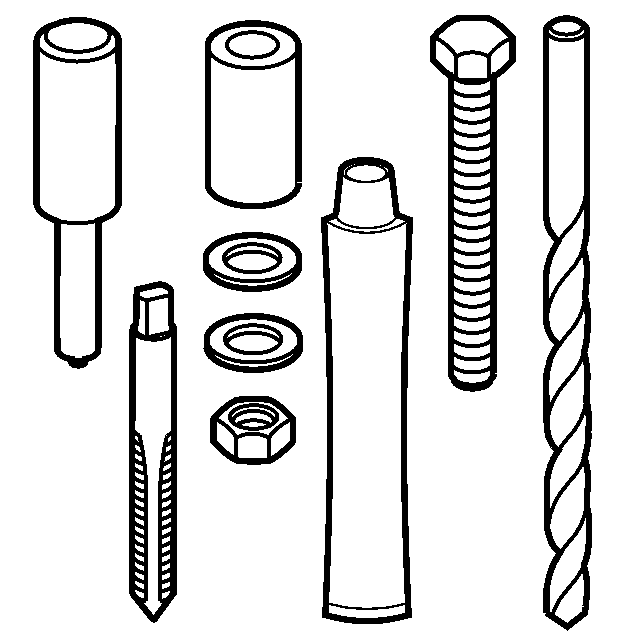

High Feature Thread Repair Kit

South America Use Local Equivalent

Special Tools

EN-42385-2000

J-42385-2000

Thread Insert Kit

South America Use Local Equivalent

Special Tools

EN-43690-A

J-43690-A

Rod Bearing Clearance Checking Tool

South America Use Local Equivalent

Special Tools

EN-43965

J-43965

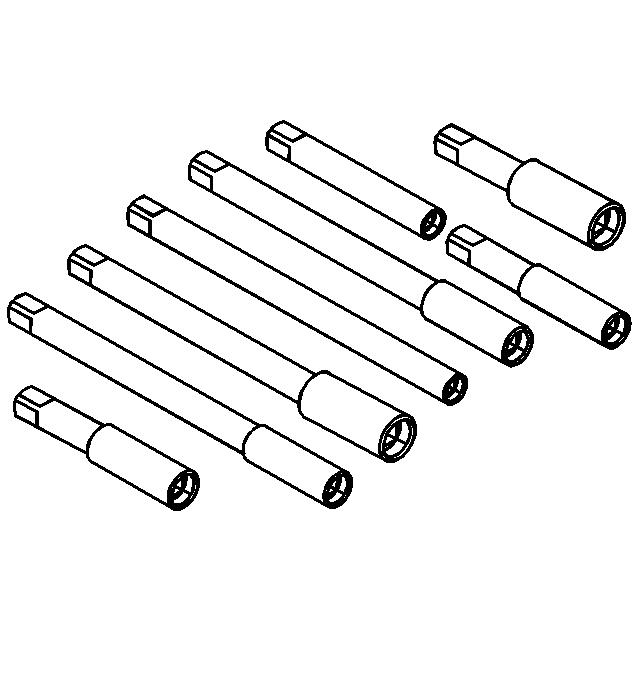

Thread Repair Extension Kit

South America Use Local Equivalent

Special Tools

EN-45000

J-45000

KM J-45000

87-91-360

Seal Remover

South America Use Local Equivalent

Special Tools

EN-45027

J-45027

Tensioner Tool

South America Use Local Equivalent

Special Tools

EN-45059

J-45059

KM 470-B

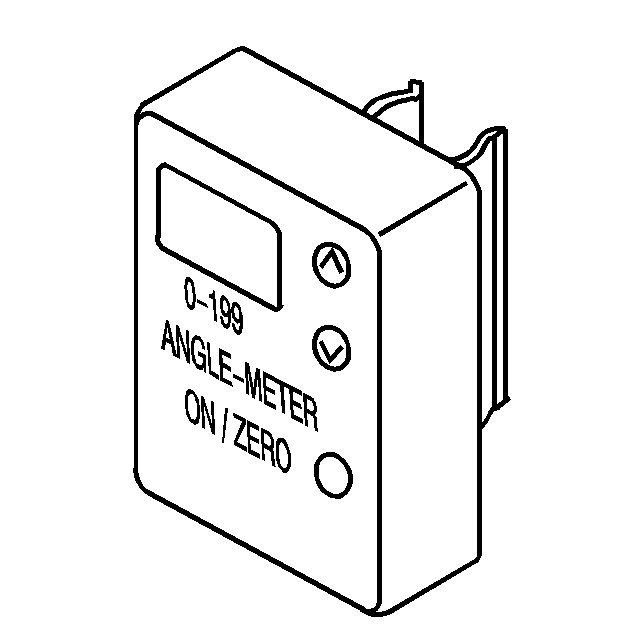

Angle Meter

South America Use Local Equivalent

Special Tools

EN-45299

J-45299

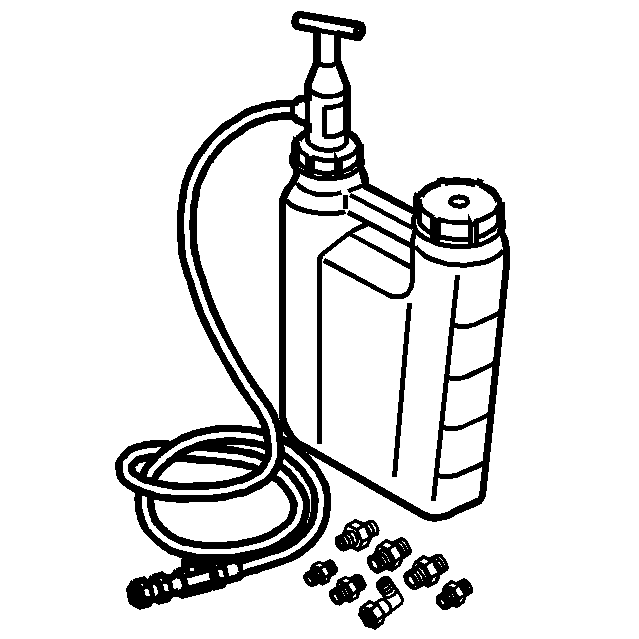

Engine Preluber

South America Use Local Equivalent

Special Tools

EN-46101

J-46101

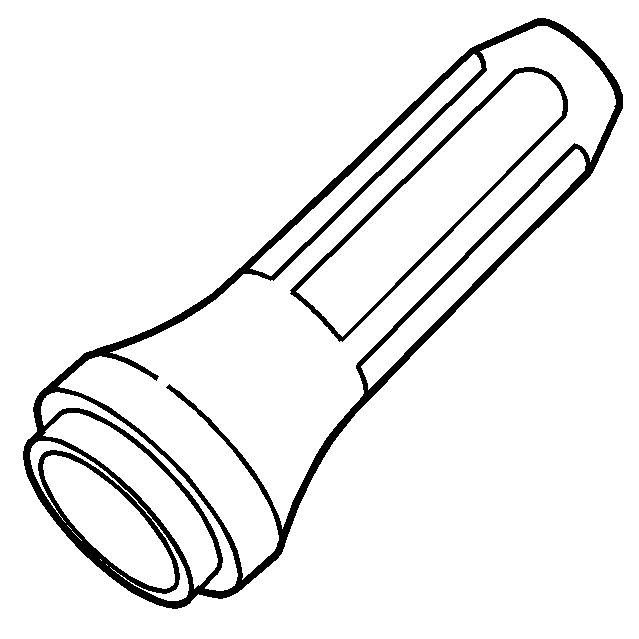

Spark Plug Tube Seal Guide

Special Tools

EN-46103

J-46103

Camshaft Actuator Valve Seal Installer

Special Tools

EN-46104

J-46104

V-0506022

Water Pump Pulley Holding Tool

Special Tools

EN-46106

EN-50638

J-46106

KM-652

Flywheel Holding Tool

Special Tools

EN-46109

J-46109

V-0506033

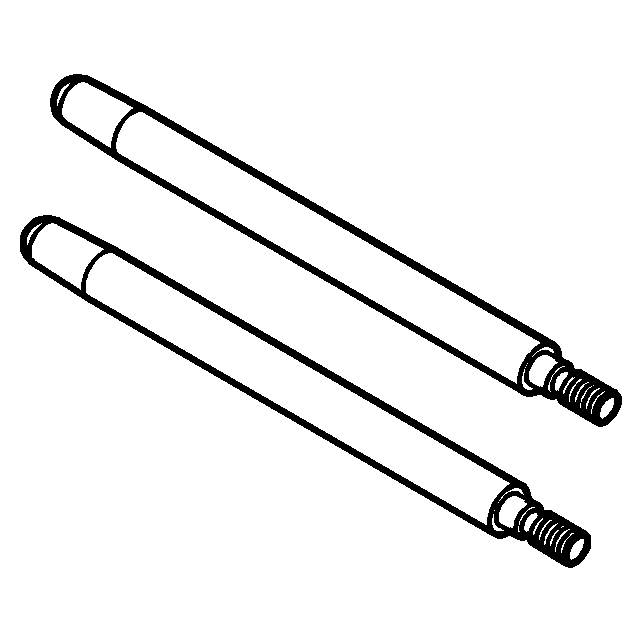

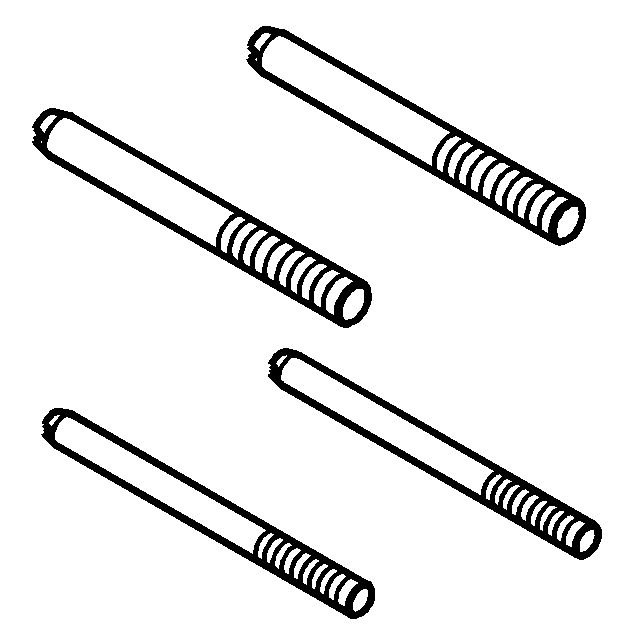

Guide Pins

Special Tools

EN-46110

EN-46110-EU

J-46110-EU

On-Vehicle Valve Spring Compressor

South America Use Local Equivalent

Special Tools

EN-46112

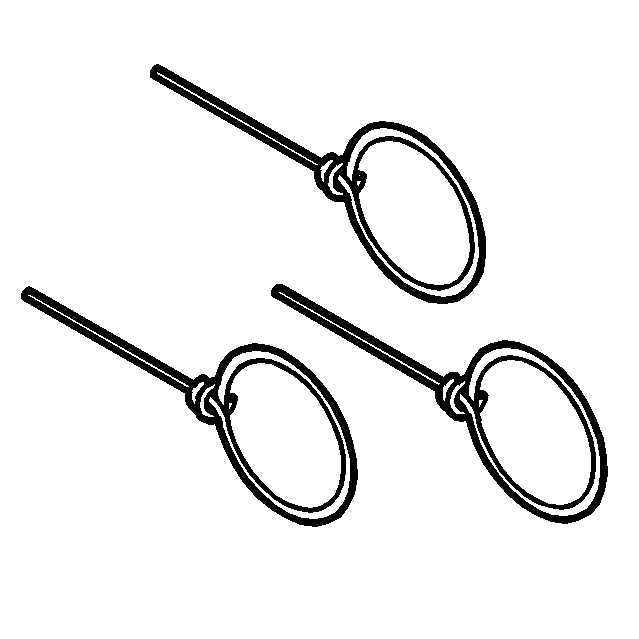

Tensioner Retraction Pins

South America Use Local Equivalent

Special Tools

EN-46114

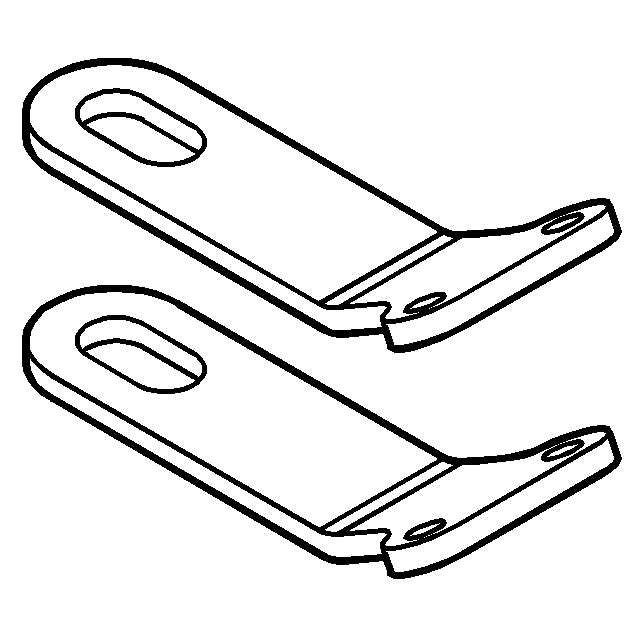

Engine Lift Brackets

Special Tools

EN-46116

KM-840 (Remover)/EN-47986 (Installer)

83-94-157

V-0506032

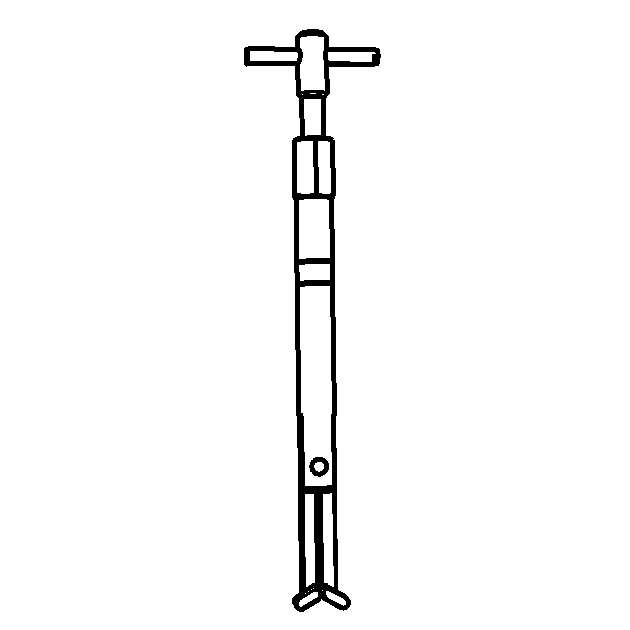

Valve Stem Seal Remover/Installer

Special Tools

EN-46117

Valve Stem Key Remover/Installer

South America Use Local Equivalent

Special Tools

EN-46119

V-0506034

Off-Vehicle Valve Spring Compressor Adapter

Special Tools

EN-46121

V-0506030

Connecting Rod Guide Pin Set

Special Tools

EN-46122

Camshaft Position Actuator Check-Ball Valve Remover/Installer

South America Use Local Equivalent

Special Tools

EN-46745

J-43654

Piston Pin Clip Remover/Installer

South America Use Local Equivalent

Special Tools

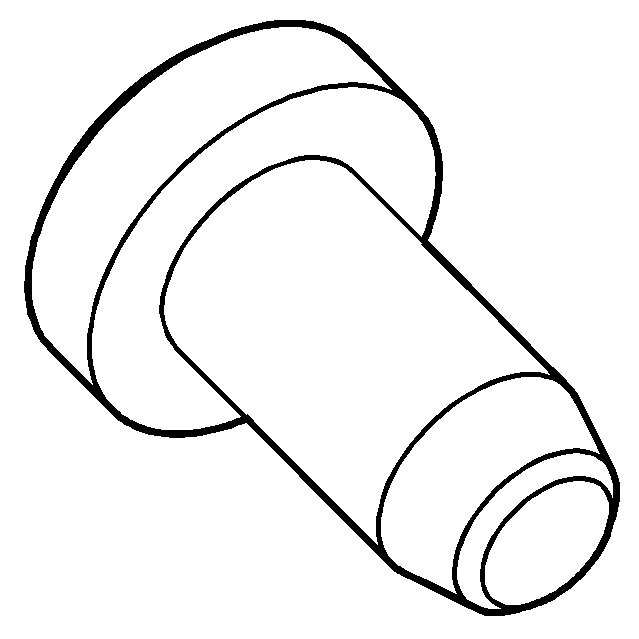

EN-47839

V-0506024

Crankshaft Rear Oil Seal Installation Tool

Special Tools

EN-47971

J-42907

Oil Pressure Gauge Adapter

Special Tools

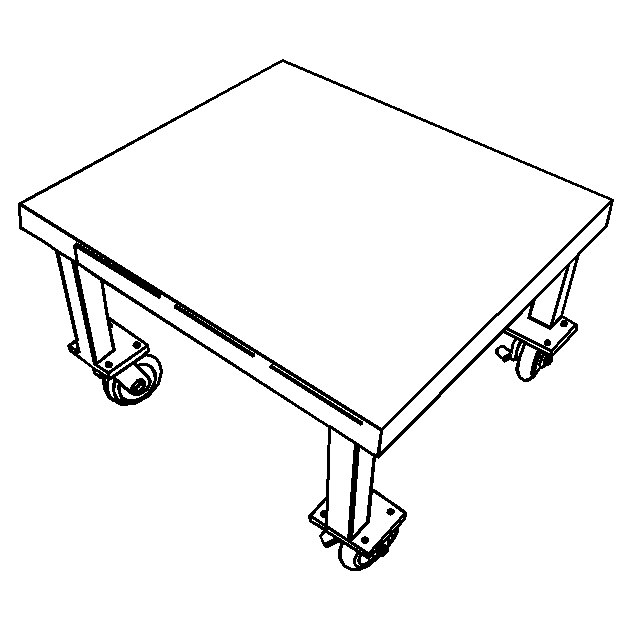

EN-48243

Engine Assembly Remove/Install Pallet

Special Tools

EN-48244

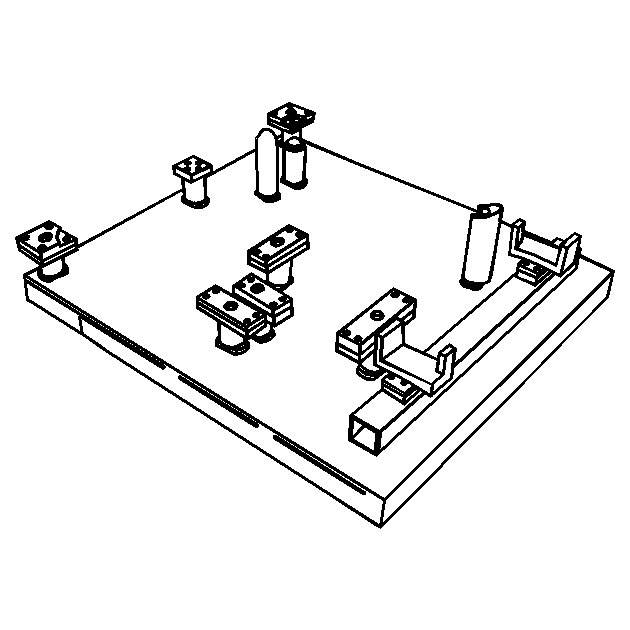

Engine Assembly Remove/Install Pallet Supporter

Special Tools

EN-48313

Timing Chain Retention Tool

Special Tools

EN-48383

Camshaft Retaining Tool

Special Tools

EN-48589-A

EN-48589

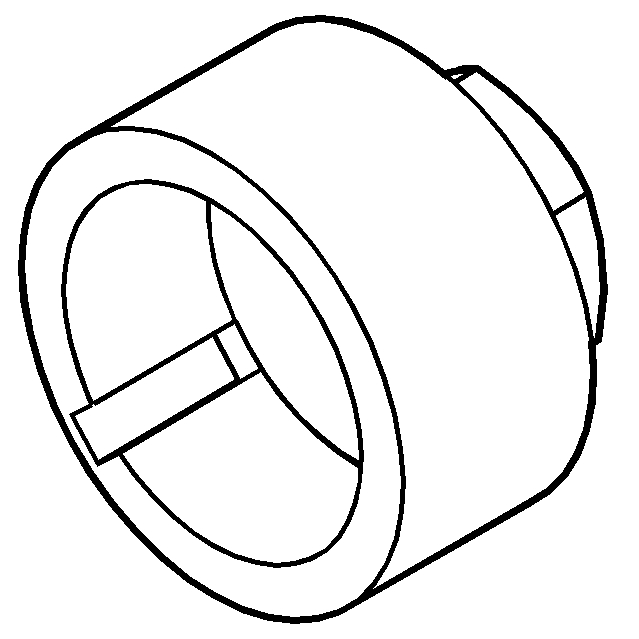

Crankshaft Rotation Socket

Special Tools

EN-48896

HP Fuel Pump Installation Alignment Gauge

Special Tools

EN-49102

J-41818 & EN-47985

V-0506025

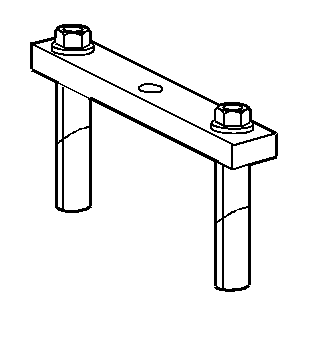

Crankshaft Bearing Cap Remover

Special Tools

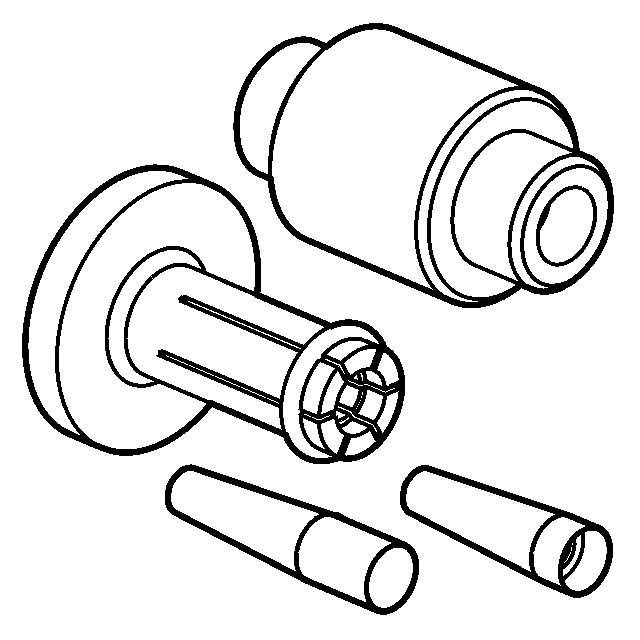

EN-49245

EN-48266 and EN-49245-1

Injector Seal Installer Kit

Special Tools

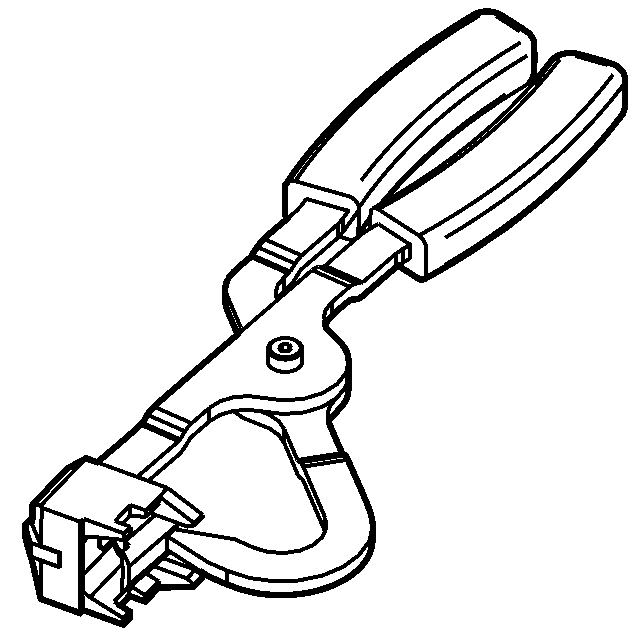

EN-49247

Injector Retaining Clip Installer

Special Tools

EN-49248

Injector Rail Assembly Remover

Special Tools

EN-49982

Timing Chain Retainer

Special Tools

EN-50789

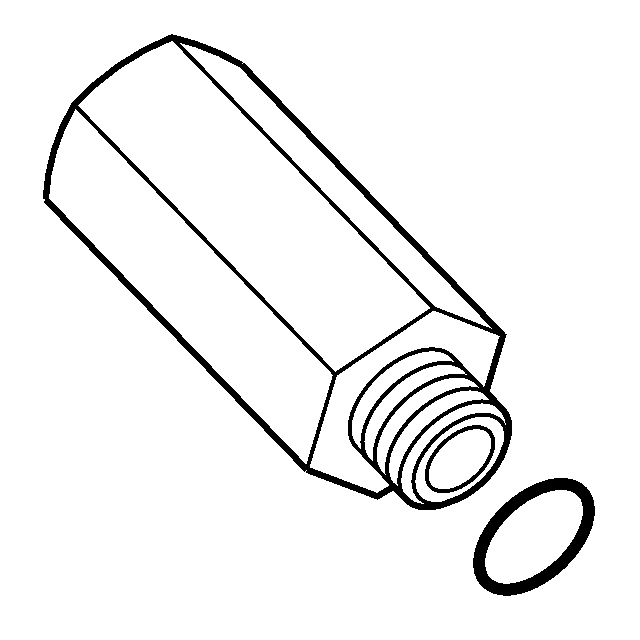

Oil Pressure Adapter Fitting

Special Tools

GE-6125-1B

J-6125-1B

KM J-7004

M-680770

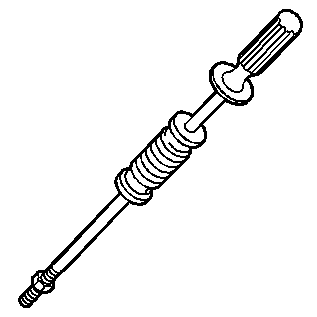

Slide Hammer Adapter

Special Tools

GE-7872

J-7872

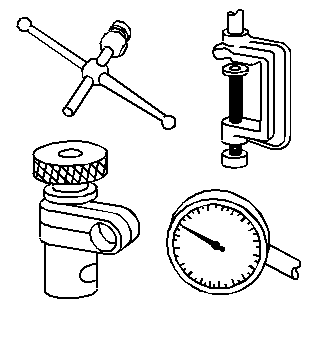

Magnetic Base Dial Indicator

South America Use Local Equivalent

Special Tools

GE-8001

J-8001

Dial Indicator Set

South America Use Local Equivalent

Special Tools

GE-28428-E

J-28428-E

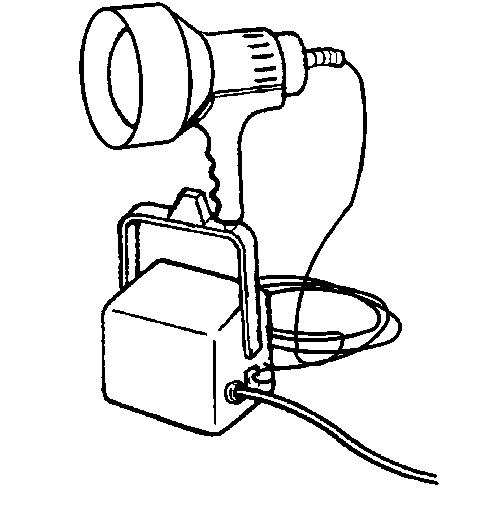

High Intensity Black Light Kit

South America Use Local Equivalent

Special Tools

GE-48326

Sealant Dispenser

Special Tools

GE-8358

J-8358

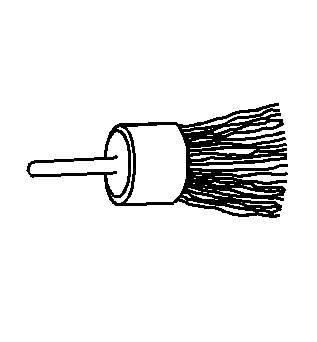

Carbon Removal Brush

South America Use Local Equivalent

Special Tools

J-38416-B

Crankshaft Balancer Remover

Special Tools
