Chevrolet Equinox Service Manual: Special Tools

Illustration

Tool Number / Description

Special Tools

EL-25070

EL-38125-5A

EL-38125-5

J-38125-5A

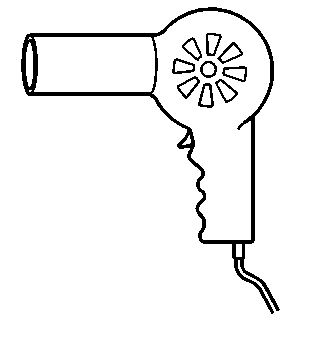

Heat Gun 500–700 F

Special Tools

EL-35616

KM-609

Tyco Electronic Tool (5–1579007–3)

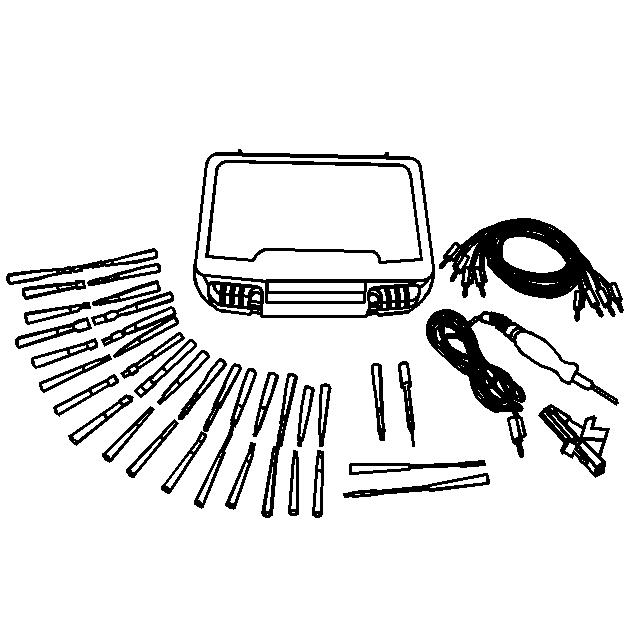

Terminal Test Probe Kit

Special Tools

EL-35616-200

KM-J-34142–B

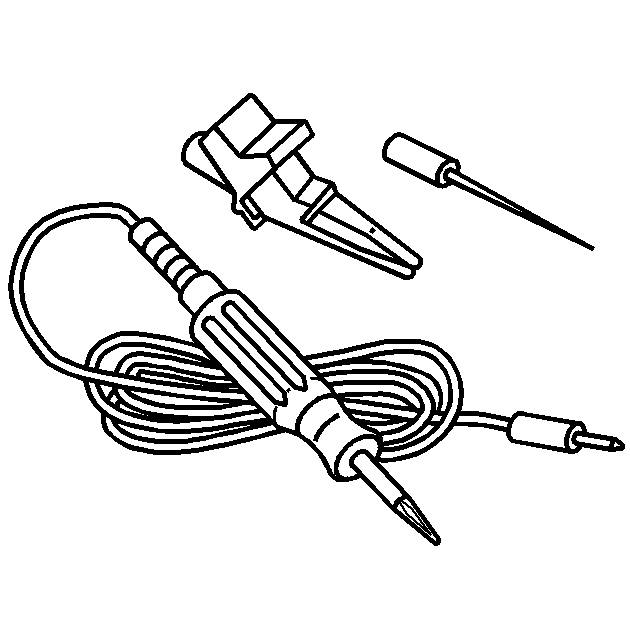

Test Light– Probe Kit

Special Tools

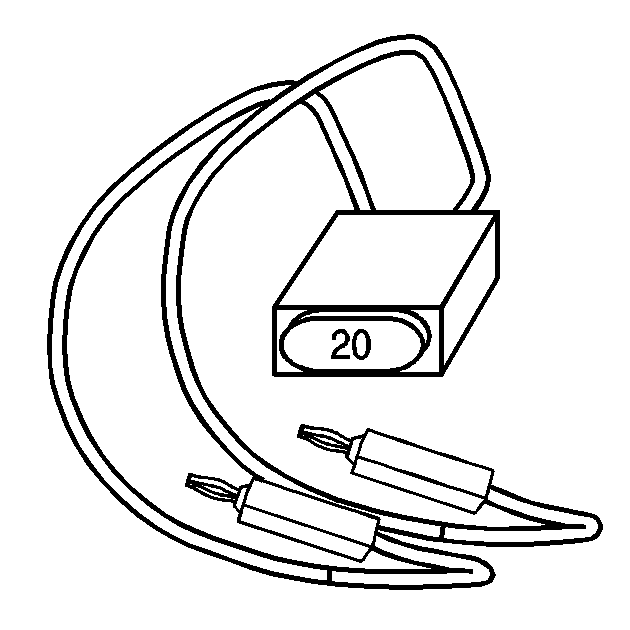

EL-35616-20F

KM-963

Fused Jumper Wire

Special Tools

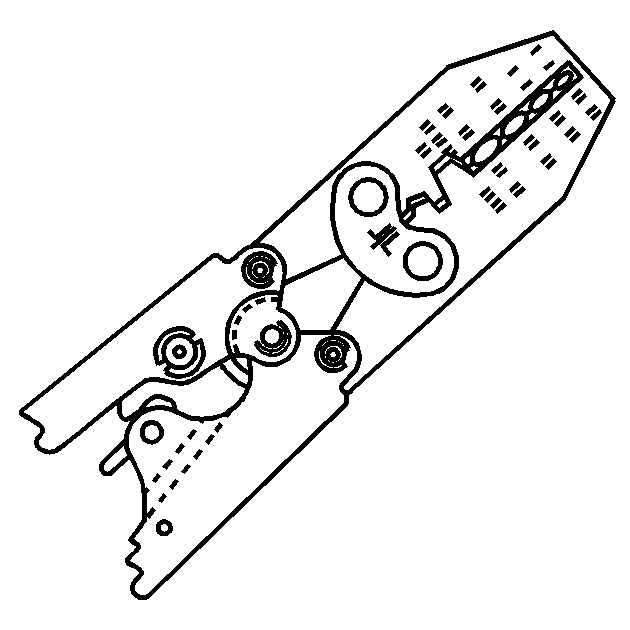

EL-38125–10 (Non-North America)

EL-38125–EU (Europe)

J-38125-8 (North America Only)

Splice Sleeve Crimp Tool

Special Tools

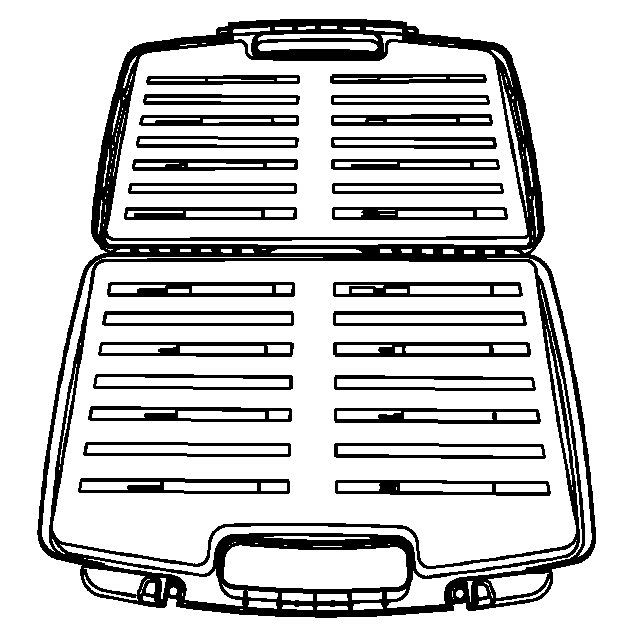

EL-38125-550 (North America Only)

Terminal Release Tool Kit

Special Tools

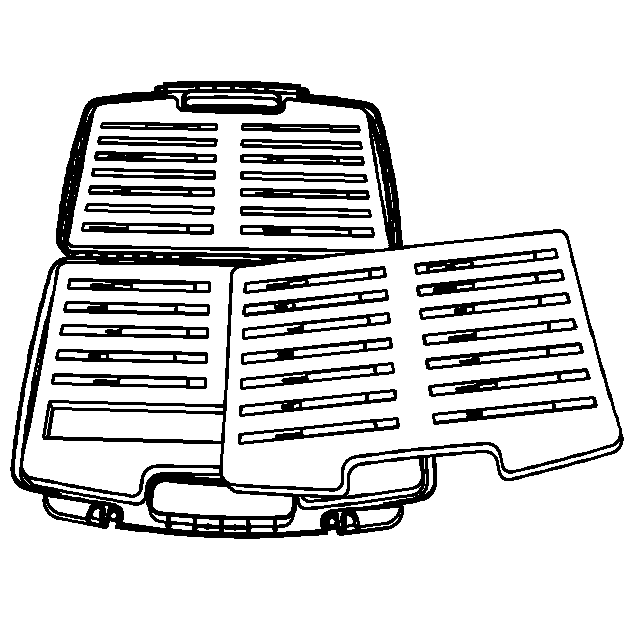

EL-38125-580 (Non-North America)

Terminal Release Tool Kit

Special Tools

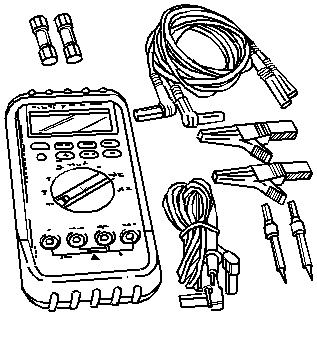

EL-39200

Digital Multimeter

Special Tools

EL-42759

Ignition Switch Connector Release Tool

Special Tools

EL-43244

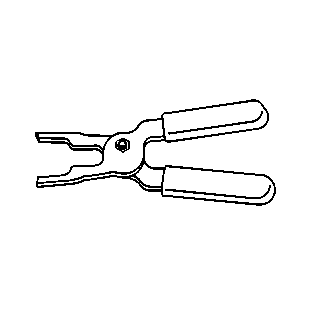

Relay Puller Pliers

Special Tools

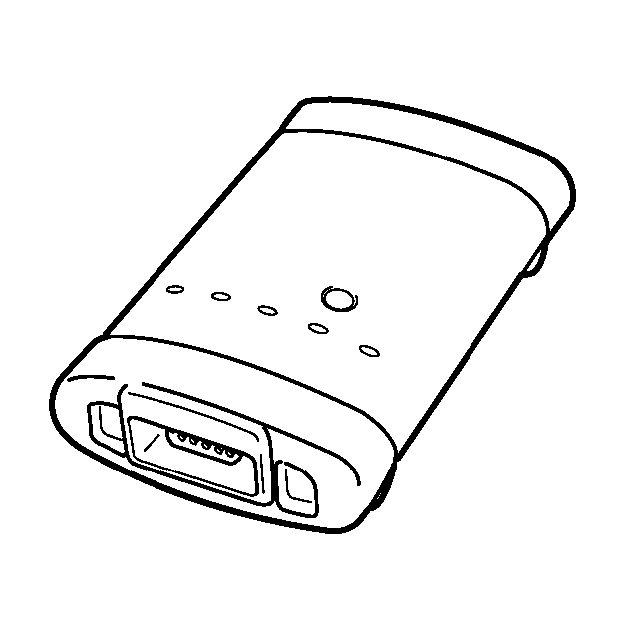

EL-47955

J-2534

Multi Diagnostic Interface MDI

Special Tools

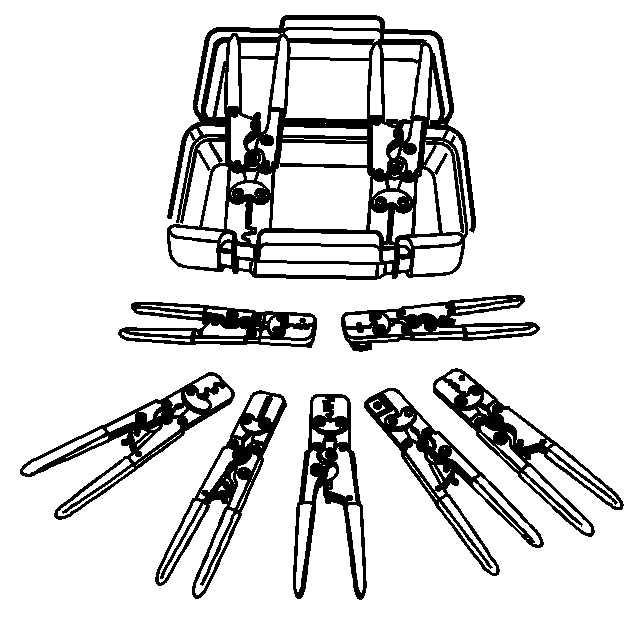

EL-50040 (Holden Only)

Crimping Tool Kit

Special Tools
IllustrationTool Number/ DescriptionEL-46079J-46079Tire Pressure Monitor Diagnostic ToolEL-49642EL-50113Europe– Use recommended equivalent workshopequipmentSPS Programming Support Tool ...
