Side Window Defogger Outlet Grille Replacement (Terrain)

Side Window Defogger Outlet Grille Replacement

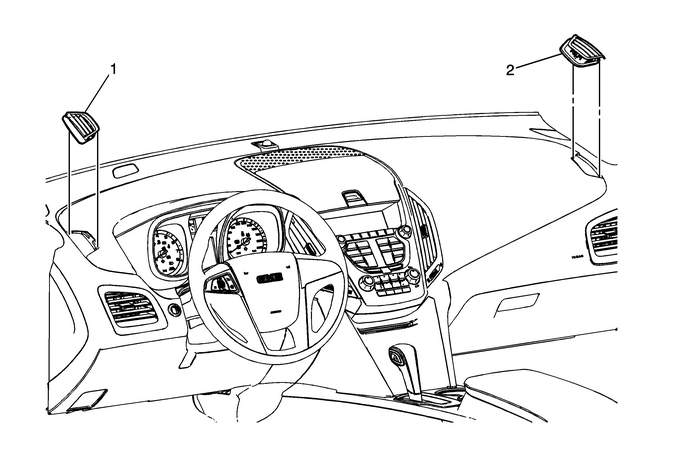

Callout

Component Name

1

Side Window Defroster Outlet Grilles (Left)

Procedure

Use a flat bladed plastic trim tool in order to release theside window defroster outlet grille from the instrument panelassembly.

2

Side Window Defroster Outlet Grilles (Right)

Procedure

Use a flat bladed plastic trim tool in order to release theside window defroster outlet grille from the instrument panelassembly.

Side Window Defogger Outlet Duct Replacement - Right Side
Side Window Defogger Outlet Duct Replacement - Right SideCalloutComponent NamePreliminary ProcedureRemove the instrument panel lower trim panel retainer. RefertoLower Trim Pad Retainer Replacement.1Si ...
