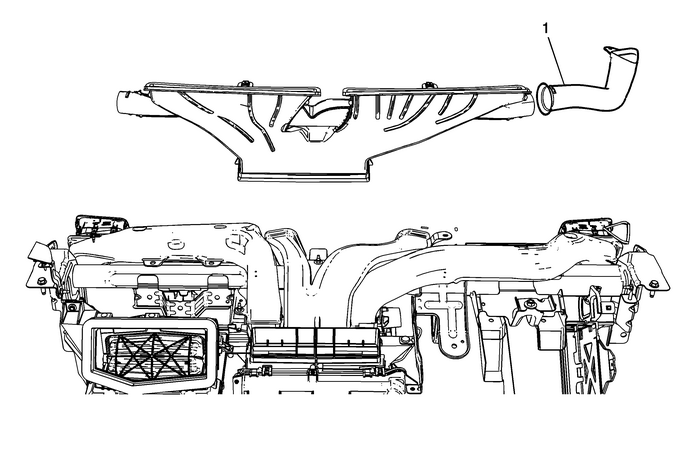

Side Window Defogger Outlet Duct Replacement - Left Side

Side Window Defogger Outlet Duct Replacement - Left Side

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel retainer. RefertoLower Trim Pad Retainer Replacement.

1

Side Window Defogger Duct Left Side
