Secondary Timing Chain Tensioner Removal - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

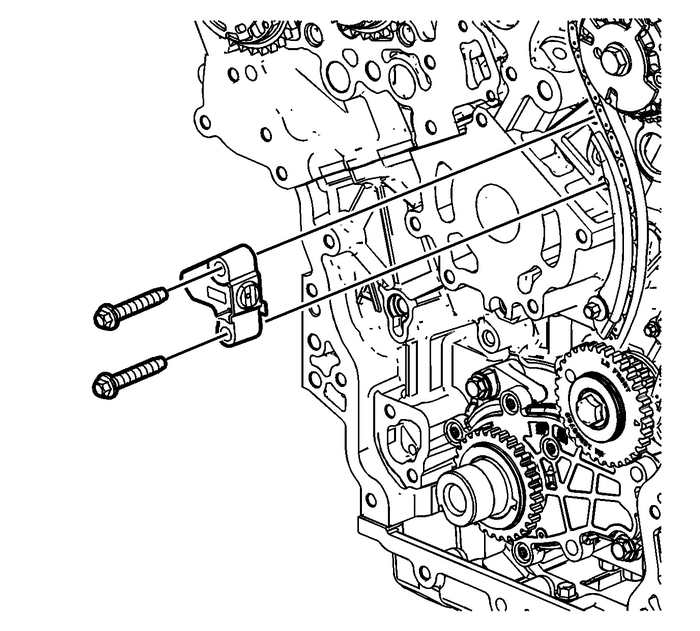

Remove the left secondary camshaft drive chain tensionerbolts.Remove the left secondary camshaft drive chaintensioner.

Secondary Timing Chain Tensioner Removal - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

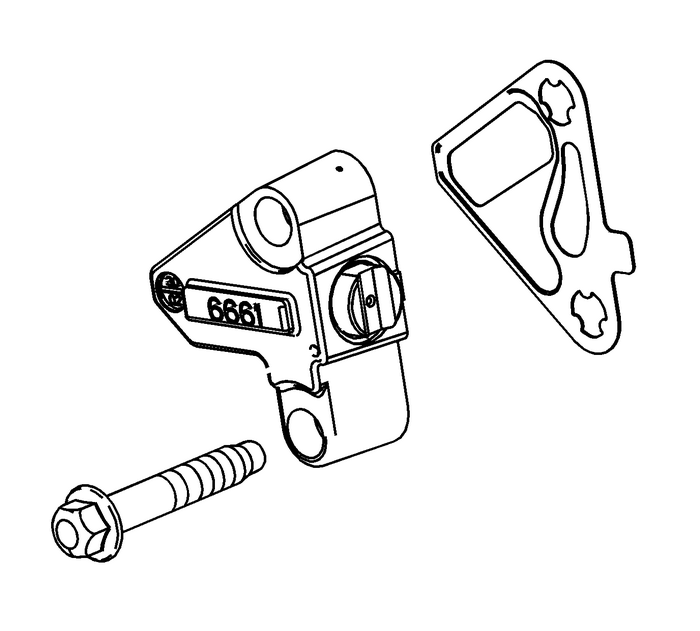

Remove and discard the left secondary camshaft drive chaintensioner gasket.Inspect the left secondary camshaft drive chain tensionermounting surface on the left cylinder head for burrs or any defectsthat would degrade the sealing of the NEW left secondary camshaftdrive chain tensioner gasket.

Secondary Camshaft Drive Chain Shoe Removal - Left Side Valvetrain Camshaft
Remove the left secondary camshaft drive chain shoebolt.Remove the left secondary camshaft drive chain shoe. ...

Oil Level Indicator and Tube Removal Engine Lubrication Oil Level Indicator Tube
Remove the oil level indicator tube bracketbolt-(1).Remove the oil level indicator and tube-(2) bysliding the tube out from the lower crankcase hole.Remove and discard the O-ring from the oil level in ...
