Oil Level Indicator and Tube Removal Engine Lubrication Oil Level Indicator Tube

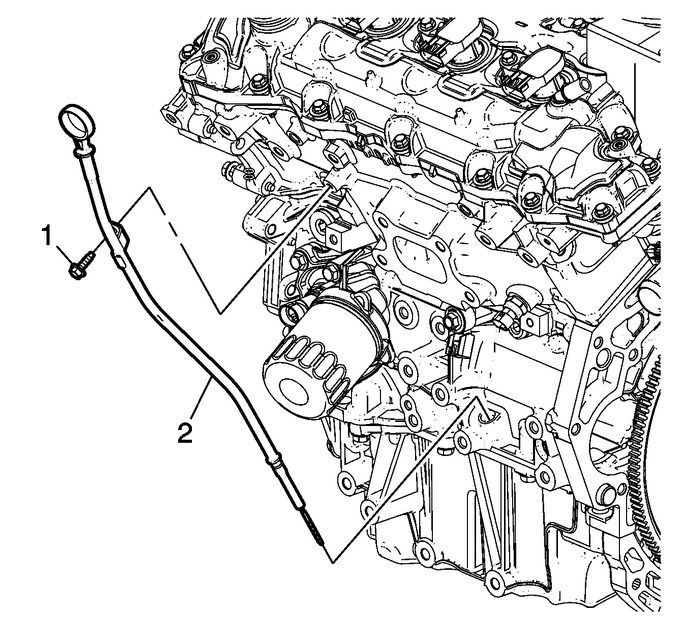

Remove the oil level indicator tube bracketbolt-(1).Remove the oil level indicator and tube-(2) bysliding the tube out from the lower crankcase hole.

Oil Level Indicator and Tube Removal Engine Lubrication Oil Level Indicator Tube

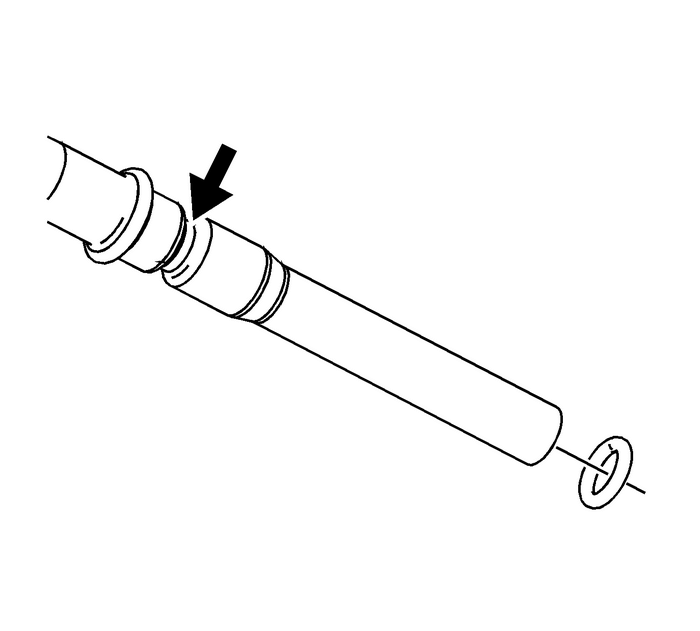

Remove and discard the O-ring from the oil level indicatortube if damaged.

Secondary Timing Chain Tensioner Removal - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner
Remove the left secondary camshaft drive chain tensionerbolts.Remove the left secondary camshaft drive chaintensioner.Remove and discard the left secondary camshaft drive chaintensioner gasket.Inspect ...

Oil Pan Removal Engine Lubrication Oil Sump/Pan
Remove the oil pan bolts-(1)and-(2).Using the pry points located at the edge of the oil panseparate the RTV sealant.Remove the oil pan-(1) from the block. ...
