Chevrolet Equinox Service Manual: Secondary Camshaft Intermediate Drive Chain Replacement - Right Side Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Secondary Camshaft Intermediate Drive Chain Replacement - Right Side Valvetrain Camshaft

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - Right Side.Remove the right bank secondary camshaft drive chain shoe.Refer toSecondary Camshaft Drive Chain Shoe Removal - Right Side.Remove the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Removal - Right Side.

Secondary Camshaft Intermediate Drive Chain Replacement - Right Side Valvetrain Camshaft

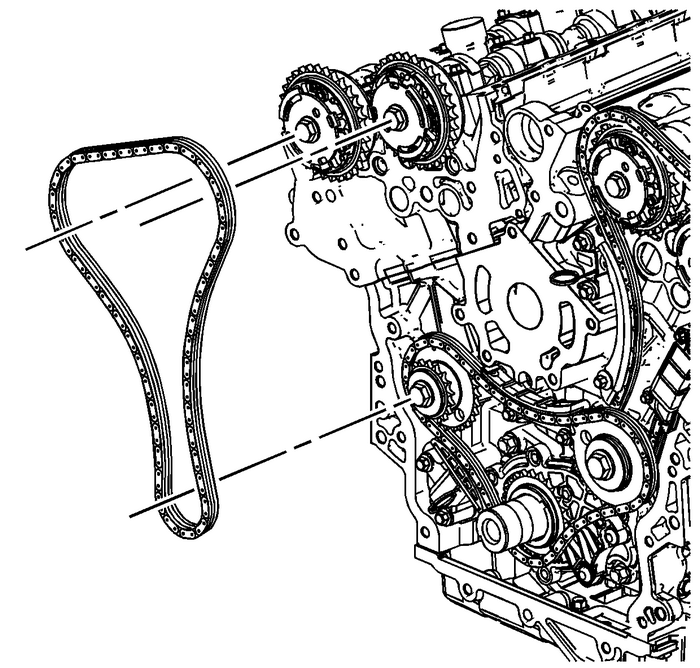

Remove the right bank secondary camshaft drive chain.Installation ProcedureEnsure the stage-1 camshaft timing is correct.Refer toSetting Camshaft Timing.

Secondary Camshaft Intermediate Drive Chain Replacement - Right Side Valvetrain Camshaft

Install the right bank secondary camshaft drive chain. RefertoSecondary Camshaft Intermediate Drive Chain Installation - Right SideInstall the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Installation - Right Side.Install the right bank secondary camshaft drive chain shoe.Refer toSecondary Camshaft Drive Chain Shoe Installation - Right Side.Install the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Installation - Right Side.Install the engine front cover. Refer toEngine Front Cover Replacement.
