Rear Side Door Window Belt Reveal Molding Replacement Doors

Rear Side Door Window Belt Reveal Molding Replacement

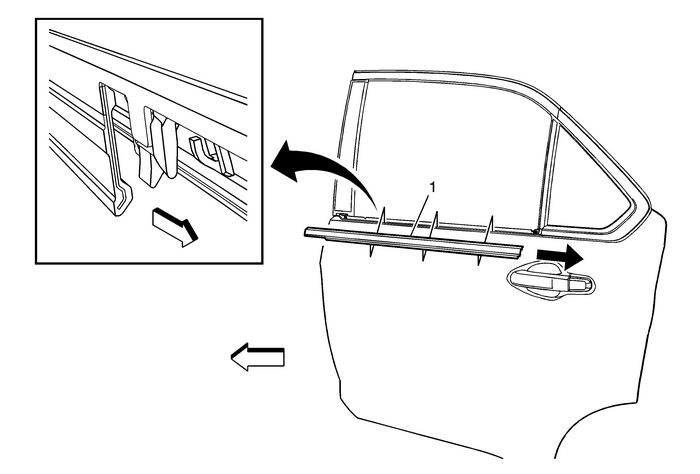

Callout

Component Name

1

Rear Side Door Window Belt Reveal Molding

ProcedurePlace the window in the fully down position.Apply masking tape to the applique to protect thefinish.Start at the front edge of the rear side door window revealmolding, pull upward while working rearward releasing it from thedoor flange.Inspect the door window for proper operation.

Tip:The reveal molding has two clips that attach to the innerdoor flange, front and rear edge of the molding.
