Rear Seat Recliner Replacement (with 60 percent seat) Seats Rear

Rear Seat Recliner Replacement

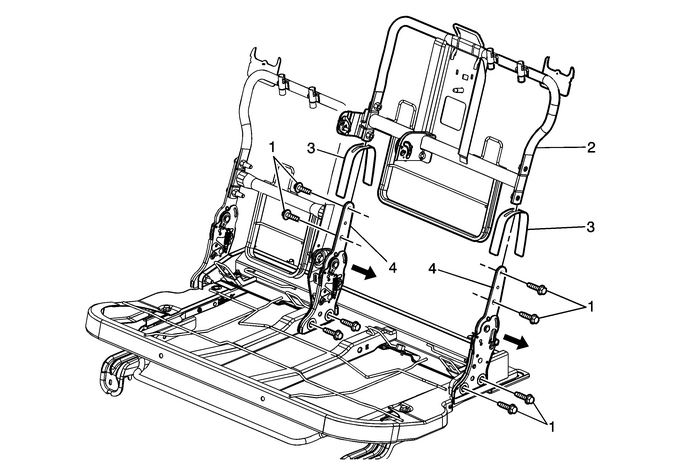

Callout

Component Name

Preliminary ProcedureRemove the rear seat. Refer toRear Seat Removal and Installation.Remove the rear seat recliner inner finish cover. Refer toRear Seat Recliner Inner Finish Cover ReplacementRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover ReplacementRemove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover Replacement

1

Rear Seat Back Cushion Frame Bolt (Qty:-8)

Caution:Refer toFastener Caution.

Tighten

50-Y(37-lb-ft)

Note:Pull seat back cover and pad upward to access the reclinerbolts

2

Rear Seat Back Cushion Frame Assembly

3

Rear Recliner Finish Cover

4

Rear Seat Recliner Assembly

Tip:Disconnect the seat recliner cable from the reclinermechanism on the seat back.
