Rear Seat Recliner Outer Finish Cover Replacement Seats Rear

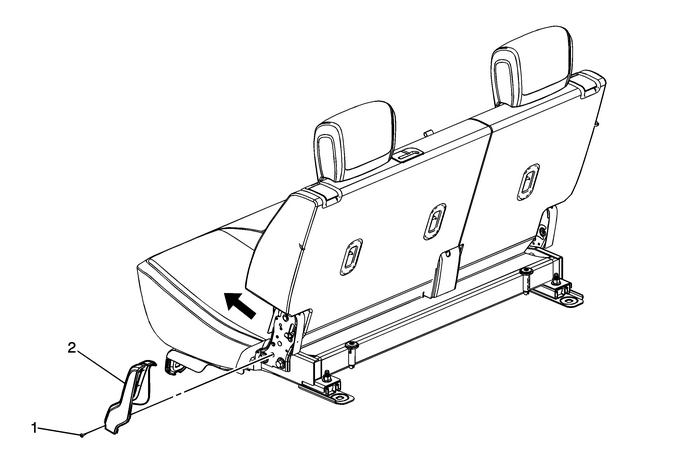

Rear Seat Recliner Outer Finish Cover Replacement

Callout

Component Name

1

Rear Seat Recliner Outer Finish Cover Fastener

2

Rear Seat Recliner Outer Finish Cover

Procedure

Slide cover forward and then outboard to disengageretainers.
