Rear Seat Center Belt Replacement Primary Seat Belts

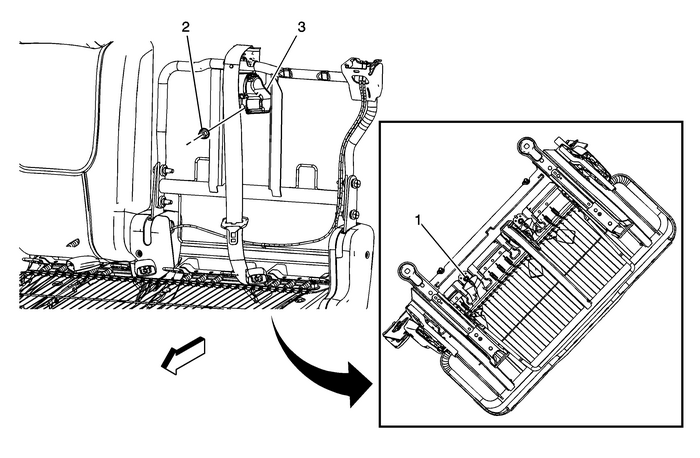

Rear Seat Center Belt Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat cushion cover and pad. Refer toRear Seat Cushion Cover and Pad Replacement.Remove the sixty percent rear seat back cushion cover and pad. Refer toRear Seat Back Cushion Cover and Pad Replacement.

1

Rear Seat Center Belt Anchor Bolt

Caution:Refer toFastener Caution.

Tighten

45-Y-(33-lb-ft)

2

Rear Seat Center Belt Retractor Nut

Tighten

45-Y-(33-lb-ft)

3

Rear Seat Center Retractor Assembly

Inflatable Restraint Passenger Presence System Scan Tool Information
