Chevrolet Equinox Owners Manual: Rear Compartment Fuse Block

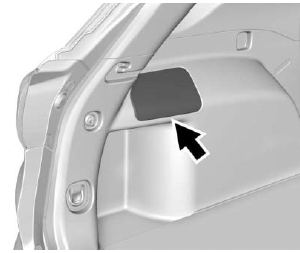

The rear compartment fuse block is behind a trim panel on the driver side of the rear compartment.
Remove the trim plate to access the fuse block.
The vehicle may not be equipped with all of the fuses and relays shown.
|

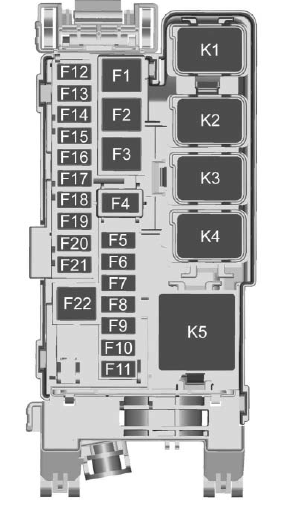

Fuses |
Usage |
|
F1 |
Exhaust fuel heater |
| F2 | Liftgate |
| F3 | Trailer auxiliary power |
| F4 | Power seats |
| F5 | Memory seat module |
| F6 | Sunroof |
| F7 | Side blind zone alert |
| F8 | Trailer reverse lamps |
| F9 | Rear heated seat 1 |
| F10 | Parking assist |
| F11 | Rear heated seat 2 |
| F12 |
- |
| F13 | Trailer parking lamp |
| F14 | Right trailer turn signal lamp |
| F15 | Left parking lamp |
| F16 | Right parking lamp |
| F17 |
- |
| F18 | Left trailer turn signal lamp |
| F19 | All-wheel drive |
| F20 | Lumbar |
| F21 | Rear auxiliary power outlet |
| F22 | Rear all-wheel drive |
|
Relays |
Usage |
|
K1 |
Right trailer stoplamp/Turn signal lamp |
| K2 | Trailer reverse lamps |
| K3 | Left trailer stoplamp/Turn signal lamp |
| K4 | Park |
| K5 | Selective catalytic reduction (SCR) - (diesel only) |
Instrument Panel Fuse Block
The instrument panel fuse block is
under the instrument panel on the
driver side.
To access the fuses, press and
release the latch near the top center
square.
Apply pressure to the two r ...
