Rear Brake Shield Replacement Disc Brakes

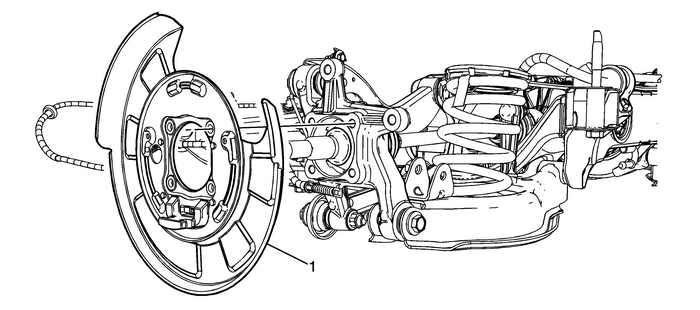

Rear Brake Shield Replacement

Callout

Component Name

Warning:Refer toBrake Dust Warning.

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Remove the park brake shoes. Refer toParking Brake Shoe Replacement.Remove the wheel speed sensor. Refer toRear Wheel Speed Sensor Replacement.Disconnect the park brake cable from the actuator andmounting bracket. Refer toParking Brake Rear Cable Replacement.Remove the wheel bearing/hub assembly. Refer toRear Wheel Bearing and Hub Replacement.

Rear Brake Shield
