Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Range Selector Lever Cable Bracket Replacement

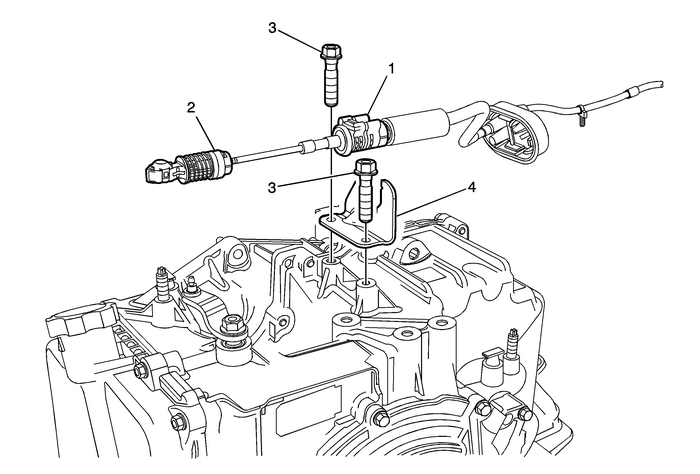

Callout

Component Name

Preliminary ProceduresSet the park brake and chock the wheels.Remove the battery tray. Refer toBattery Tray Replacement.

1

Transmission Range Selector Lever Cable Retaining Lock

2

Transmission Range Selector Lever Cable

3

Transmission Range Selector Lever Cable Bracket Bolt (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

25-Y (18-lb-ft)

4

Transmission Range Selector Lever Cable Bracket

Procedure

Adjust the cable. Refer toRange Selector Lever Cable Adjustment.

Range Reference Automatic Transmission Unit
