Quarter Window Trim Finish Panel Replacement Side Windows

Quarter Window Trim Finish Panel Replacement

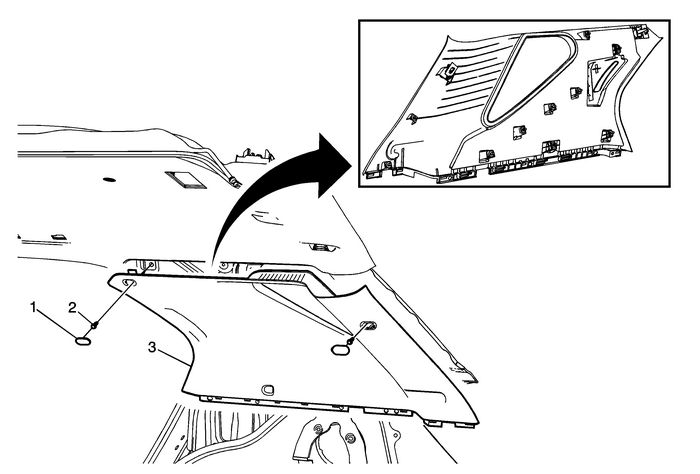

Callout

Component Name

Preliminary ProceduresDisable the SIR system. Refer toSIR Disabling and Enabling.Remove the body side trim panel. Refer toBody Side Trim Panel Replacement - Left SideorBody Side Trim Panel Replacement - Right Side.Remove the rear seat lower anchor plate bolt on the side ofthe trim panel being replaced. Refer toRear Seat Retractor Side Belt Replacement.

1

Quarter Window Trim Finish Panel Bolt Cap(Qty:-2)

2

Quarter Window Trim Finish Panel Fastener(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

3-Y-(27-lb-in)

3

Quarter Window Trim Finish Panel Assembly

ProcedureRemove fasteners from body side trim panel. Refer toBody Side Trim Panel Replacement - Left SideorBody Side Trim Panel Replacement - Right Side.Remove upper and lower together. Separate after removal, ifnecessary.Loosen the rear compartment opening weatherstrip.Route the seat belt through trim panel.Disconnect the electrical connector.
