Quarter Outer Panel Pressure Relief Valve Replacement Trim Panels/Welts

Quarter Outer Panel Pressure Relief Valve Replacement

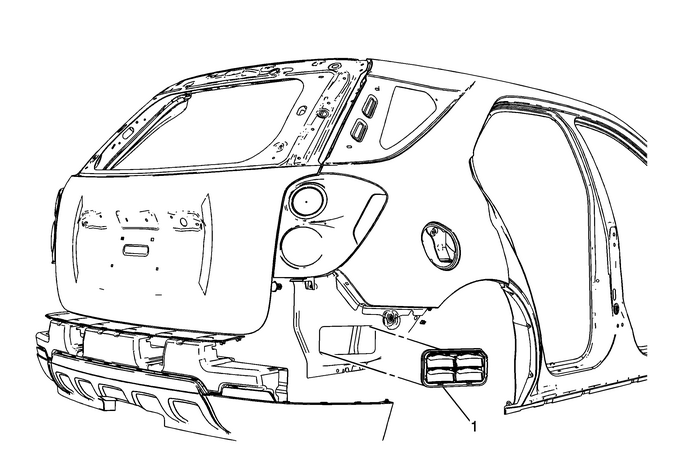

Callout

Component Name

Preliminary ProceduresRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.Reposition any wiring to gain access to pressure reliefvalve.

1

Pressure Relief Valve
