Chevrolet Equinox Service Manual: Parking Brake Rear Cable Replacement (Left) Parking Brake

Chevrolet Equinox Service Manual / Chassis / Brakes / Parking Brake Rear Cable Replacement (Left) Parking Brake

Special Tools

J-37043Parking Brake Cable Release Tool

Removal ProcedureRelease the park brake.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

Parking Brake Rear Cable Replacement (Left) Parking Brake

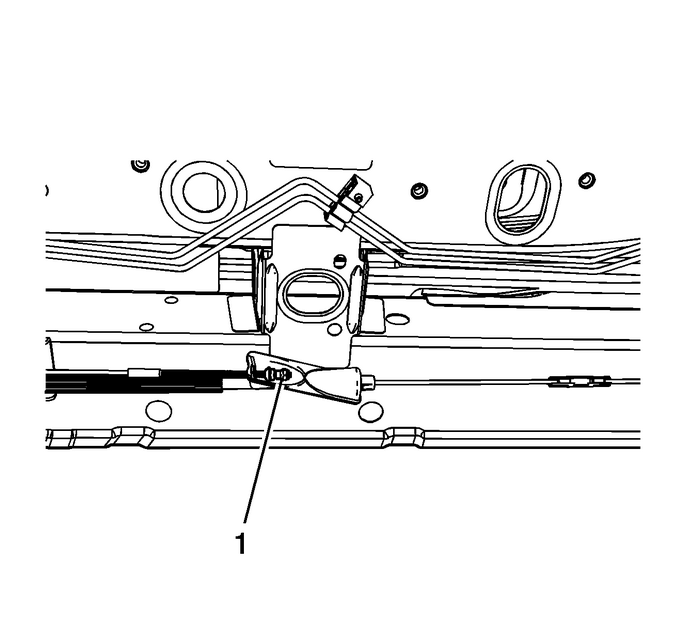

Remove the park brake equalizerlocknut-(1).

Parking Brake Rear Cable Replacement (Left) Parking Brake

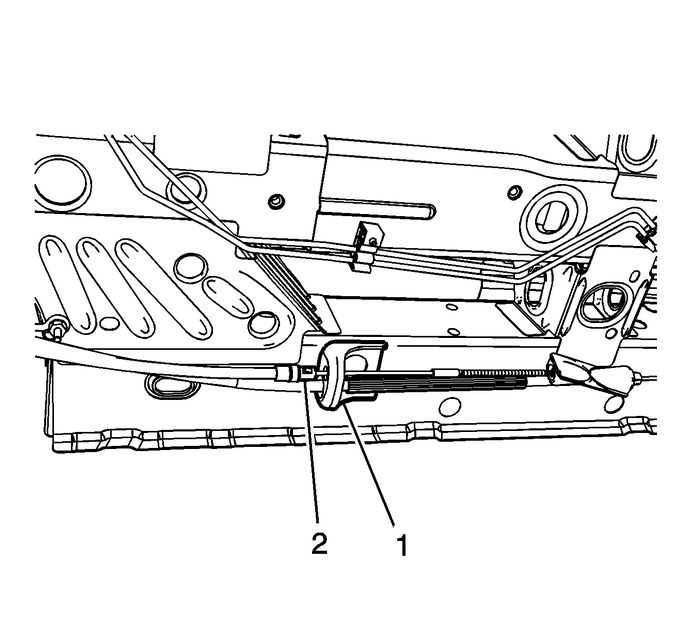

Using theJ-37043Parking Brake Cable Release Tool, release the park brake cable from the park brake cablebracket-(1)-by compressing the locking tabson the cable conduit-(2).Remove the park brake cable from the bracket and theequalizer.

Parking Brake Rear Cable Replacement (Left) Parking Brake

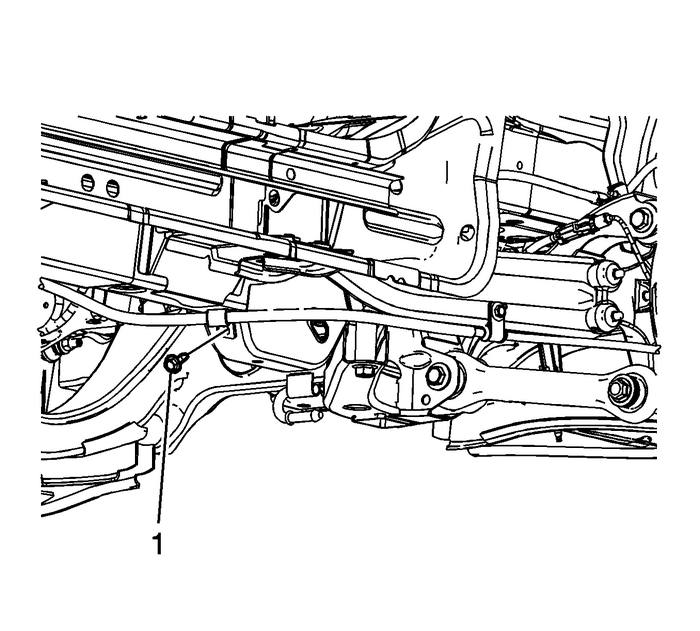

Remove the park brake cable bracketbolt-(1)-from the vehicle underbody.

Parking Brake Rear Cable Replacement (Left) Parking Brake

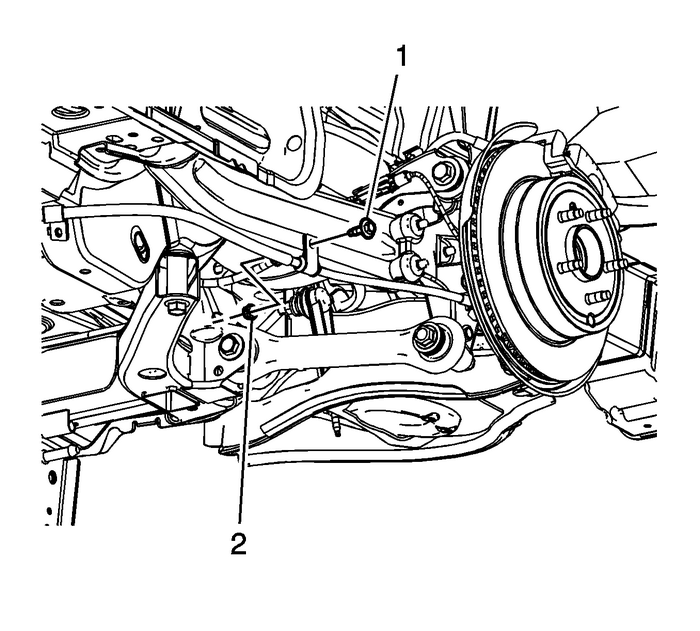

Remove the park brake cable bracketbolt-(1)-andnut-(2)-from the lower trailing arm.

Parking Brake Rear Cable Replacement (Left) Parking Brake

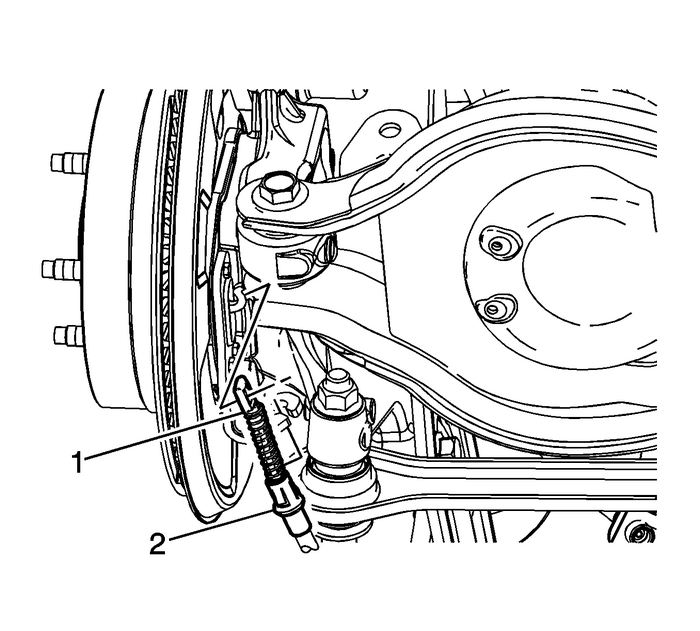

Disconnect the park brake cableeyelet-(1)-from the park brakeactuator.Using theJ-37043Parking Brake Cable Release Tool, remove the parking brakecable-(2)-from the park brake cablebracket.Remove the park brake cable from the cablebracket-(2).Installation Procedure

Parking Brake Rear Cable Replacement (Left) Parking Brake

Connect the park brake cableeyelet-(1)-to the park brake actuator.Install the parking brake cable-(2)-tothe park brake cable bracket.Ensure the locking tabs on the cable conduit are fullyengaged to the cable bracket.

Parking Brake Rear Cable Replacement (Left) Parking Brake

Caution:Refer toFastener Caution.

Install the park brake cable bracketbolt-(1)-andnut-(2)-and tighten to-25-Y(18-lb-ft).Install the park brake cable bracketbolt-(1)-to the vehicle underbody and tightento-25-Y(18-lb-ft).

Parking Brake Rear Cable Replacement (Left) Parking Brake

Install the park brake cable to the park brake cablebracket-(1).Ensure the locking tabs on the cableconduit-(2)-are fully engaged to the parkbrake cable bracket.Install the park brake cable to the equalizer.

Parking Brake Rear Cable Replacement (Left) Parking Brake

Loosely install the park brake equalizerlocknut-(1).Adjust the park brake. Refer toParking Brake Adjustment.
