Outside Rearview Mirror Folding Control Module Replacement Rearview

Outside Rearview Mirror Folding Control Module Replacement

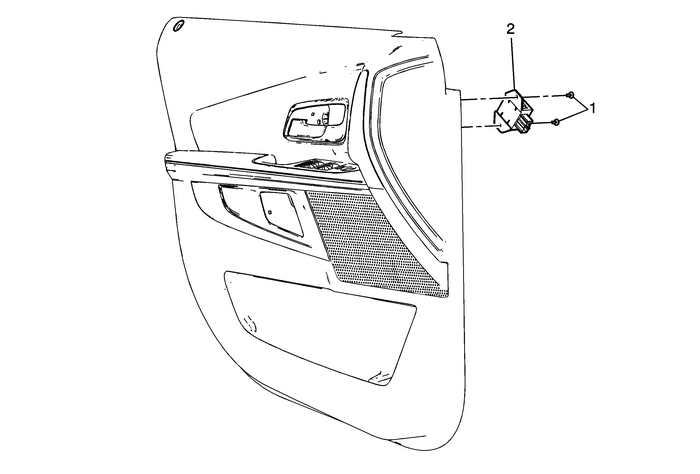

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.

1

Outside Rearview Mirror Folding Control Module Bolts(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y-(22-lb-ft)

2

Outside Rearview Mirror Folding Control Module

Procedure

Disconnect electrical connector.
