Chevrolet Equinox Service Manual: OnStar Overview

OnStar Overview

If equipped, this vehicle has a comprehensive, in-vehicle system that can connectto a live Advisor for Emergency, Security, Navigation, Connection, and DiagnosticServices.

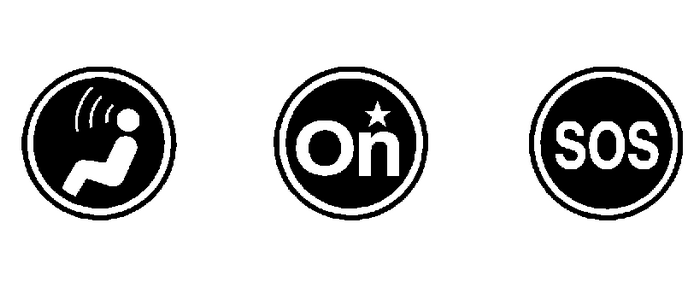

The OnStar system status light is next to the OnStar buttons. If the status lightis:

Solid Green: System is ready.Flashing Green: On a call.Red: Indicates a problem.

Press Q or call 1-888-4-ONSTAR (1-888-466-7827) to speak to an Advisor.

Press = to:

Make a call, end a call, or answer an incoming call.Give OnStar Hands-Free Calling voice commands.Give OnStar Turn-by-Turn Navigation voice commands. Requires the available Directionsand Connections service plan.

Press Q to connect to a live Advisor to:

Verify account information or update contact information.Get driving directions. Requires the available Directions and Connections serviceplan.Receive On-Demand Diagnostics for a check of the vehicle’s key operating systems.Receive Roadside Assistance.

Press the OnStar Emergency button > to get a priority connection to an Emergency Advisor available 24/7 to:

Get help for an emergency.Be a Good Samaritan or respond to an AMBER Alert.Get assistance in severe weather or other crisis and evacuation routes.
Text Messaging
For vehicles equipped with Bluetooth capability, the system, if equipped with textmessaging, can display text messages, play back a message over the audio system, andsend a predefined message. Not all ...

Radio and Telephone Control Switch Replacement (NK5)
Radio and Telephone Control Switch ReplacementCalloutComponent NamePreliminary ProcedureRemove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.1Radio an ...
