Oil Level Indicator and Tube Installation Engine Lubrication Oil Level Indicator Tube

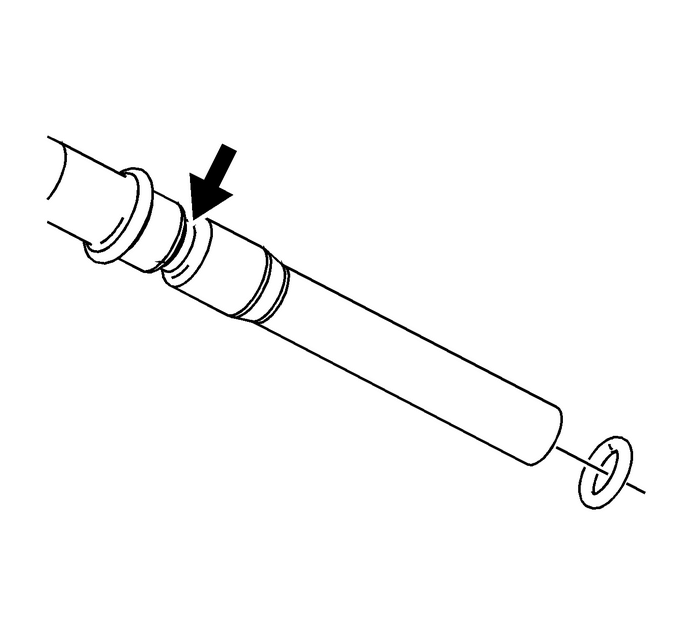

Install a NEW O-ring on the oil level indicatortube.

Oil Level Indicator and Tube Installation Engine Lubrication Oil Level Indicator Tube

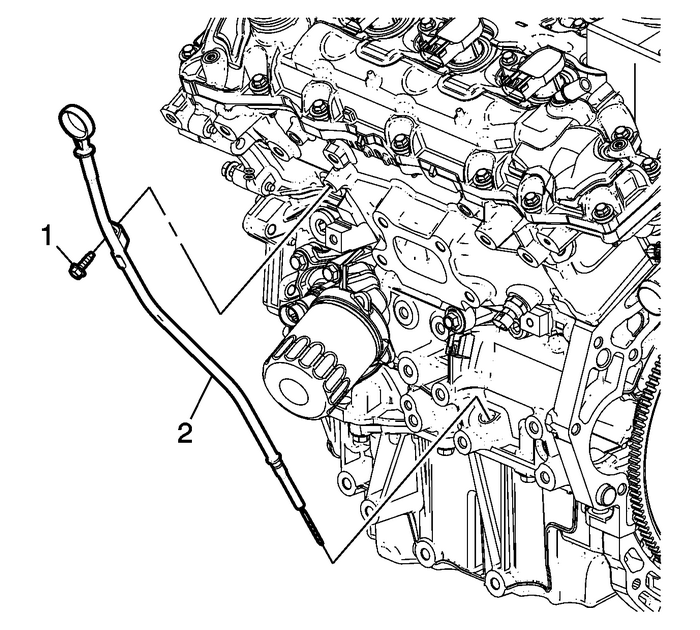

Install the oil level indicator and tube-(2) bysliding the tube down through the lower crankcase hole.

Caution:Refer toFastener Caution.

Install the oil level indicator tube bracketbolt-(1) and tighten to10-Y(89-lb-in).
Engine Coolant Thermostat Housing Installation Engine Cooling Thermostat
Install a NEW gasket onto the thermostat housing.Install the thermostat housing.Caution:Refer toFastener Caution.Install the thermostat housing bolts. Ensure to install theshort bolts-(1) and the long ...

Camshaft Cover Installation (LAF, LEA, or LUK) Valvetrain Camshaft
Install NEW camshaft cover grommets and camshaft cover bolts if they are servicedwith the grommet.Assemble the camshaft cover-(1) and a NEW gasket. Ensure that the gasket is locatedin the retaining gr ...
