Chevrolet Equinox Service Manual: Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

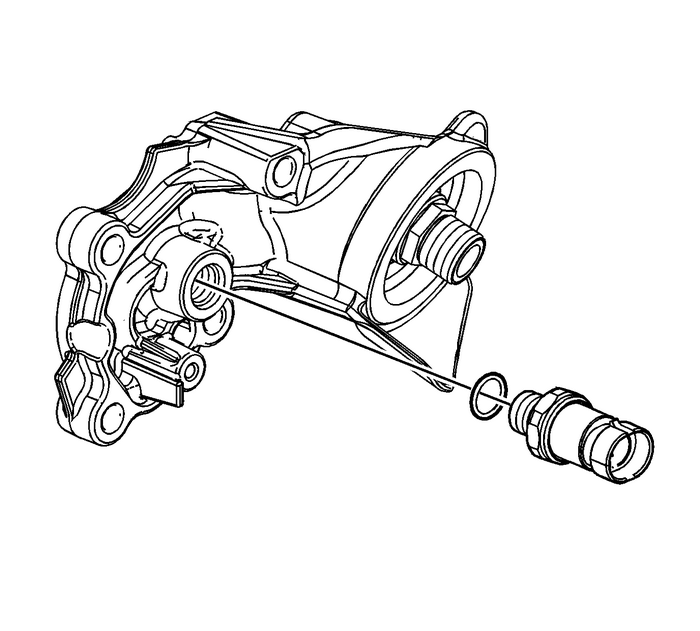

Remove the oil pressure sender.

Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

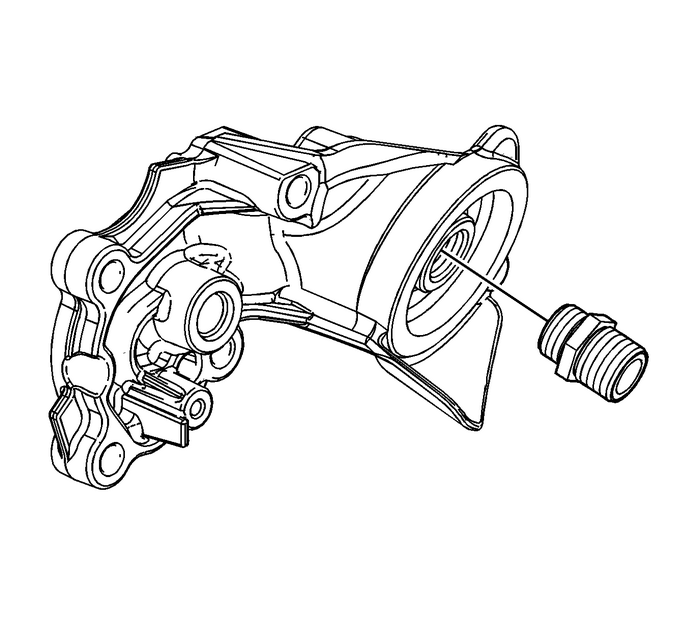

Remove the oil filter fitting.
