Control Valve Channel Plate Cleaning and Inspection (6T40/45/50 - Gen 2) Automatic Transmission Unit

34

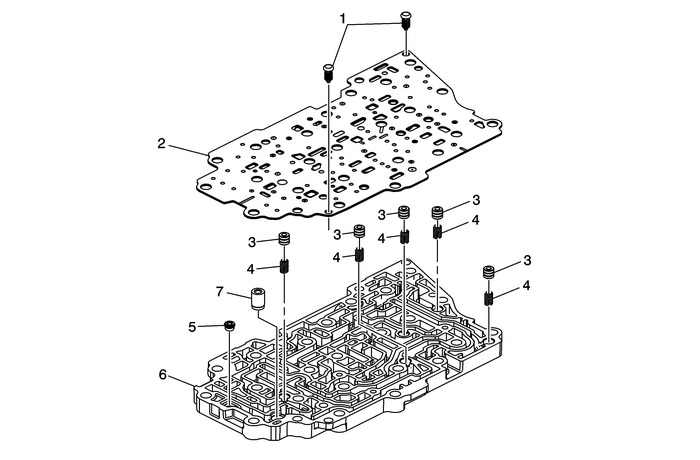

Control Valve Channel Plate Cleaning and Inspection

Callout

Component Name

1

Control Valve Body Spacer Plate Retainer

2

Channel Plate to Valve Body Spacer Plate Assembly

3

Actuator Feed Accumulator Piston-(Qty:-5)

4

Actuator Feed Accumulator Spring-(Qty:-5)

5

Variable Hi and 2-3-4 Clutch Housing Valve Ball

6

Valve Channel Plate

Note:Inspect the channel plate bolt pass through holes for damage or brinelling. Any damagewill cause incorrect pressure switch operation. Replace as necessary.

7

Control Valve Channel Plate Ball Spring Assembly
