Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal Automatic Transmission Unit

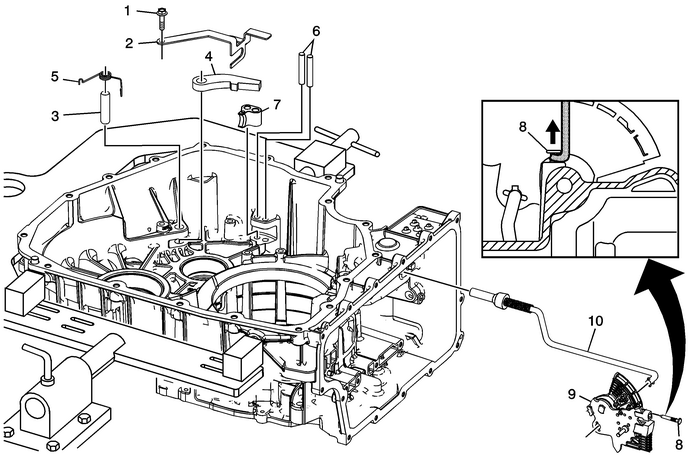

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl ActuatorRemoval

Callout

Component Name

1

Park Pawl Actuator Bracket Bolt-M6-x-25 (Qty: 2)

2

Park Pawl Actuator Bracket

3

Park Pawl Shaft

4

Park Pawl

5

Park Pawl Spring

6

Park Pawl Actuator Guide Pin

7

Park Pawl Actuator Guide

8

Manual Shift Detent Lever Pin

Note:

Use a small nail puller or other suitable tool.Discard the pin. The pin is not reusable.Special ToolsDT-23129 Universal Seal RemoverGE-6125-1B Slide Hammer with Adapter

For equivalent regional tools, refer toSpecial Tools.

9

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly

Note:Rotate the assembly counterclockwise so the actuator rod will fit through the caseopening.

10

Park Pawl Actuator Assembly
