Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation Automatic Transmission Unit

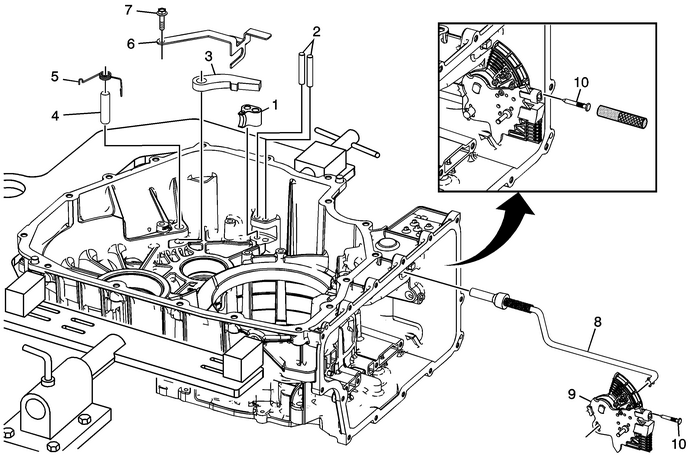

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl ActuatorInstallation

Callout

Component Name

1

Park Pawl Actuator Guide

2

Park Pawl Actuator Guide Pin

3

Park Pawl

4

Park Pawl Shaft

5

Park Pawl Spring

6

Park Pawl Actuator Bracket

7

Park Pawl Actuator Bracket Bolt-M6-x-25 (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in).

8

Park Pawl Actuator Assembly

Note:Install the park pawl actuator assembly onto the detent lever assembly.

9

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly

Note:

Rotate the assembly clockwise so the actuator rod will fit through the case opening.Lubricate shaft with ATF to prevent damage to the manual shift shaft seal.

10

Manual Shift Shaft Pin

Caution:Use J-41229 to install the manual shaft pin at thecorrect height in order to properly secure the manual shaft. If youinstall the pin too deep, the case bore may crack.

ProcedureUse a NEW pin to ensure proper engagement to the case.Inspect pin installed height is within 6.5–7.5-mm (0.25–0.30-in).

Special Tools

DT 41229 Manual Shaft Pin Installer

For equivalent regional tools, refer toSpecial Tools.
