Liftgate Upper Trim Finish Panel Replacement Trim Panels/Welts

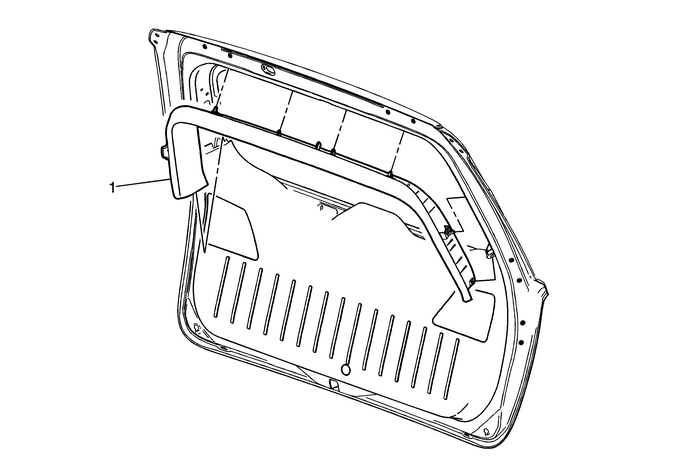

Liftgate Upper Trim Finish Panel Replacement

Callout

Component Name

1

Liftgate Upper Trim Finish Panel Assembly

Tip:The left and right outboard lower ends of the trim finishpanel snap into the liftgate lower trim finish panel.

Liftgate Lower Trim Finish Panel Replacement Trim Panels/Welts
Liftgate Lower Trim Finish Panel ReplacementCalloutComponent NamePreliminary ProcedureRemove the liftgate upper trim finish panel. Refer toLiftgate Upper Trim Finish Panel Replacement.1Liftgate Trim F ...
