Lift Plate and Holding Fixture Removal Automatic Transmission Unit

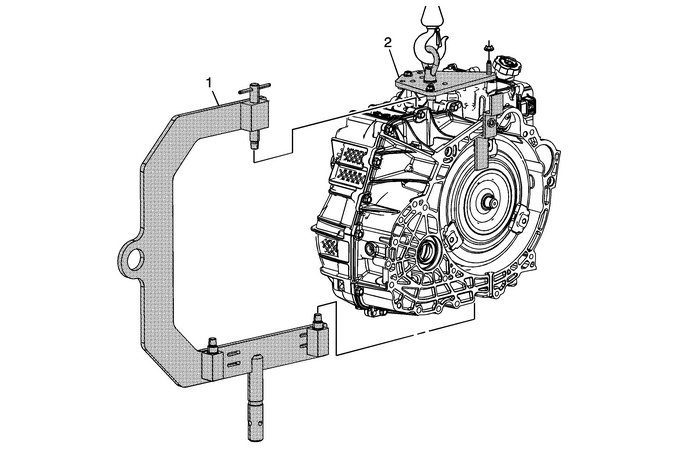

Lift Plate and Holding Fixture Removal

Callout

Component Name

1

DT-46625 Transmission Holding Fixture

Note:Raise the transmission in order to remove the holding fixture.

For equivalent regional tools, refer toSpecial Tools.

2

DT-47811-A Lift Plate

Note:Lower the transmission assembly onto the transmission jack in order to remove thelift plate.

For equivalent regional tools, refer toSpecial Tools.

Lift Plate and Holding Fixture Installation Automatic Transmission Unit
Lift Plate and Holding Fixture InstallationCalloutComponent Name1 DT-47811-A Transmission Lift PlateWarning:Handle with care, the transmission assembly weighs over90.7-kg (200-lbs). Bodily injury coul ...

Lift Plate and Holding Fixture Removal Automatic Transmission Unit
Lift Plate and Holding Fixture RemovalCalloutComponent Name1 DT-46625 Transmission Holding FixtureFor equivalent regional tools, refer toSpecial Tools.Note:Raise the transmission in order to remove th ...
