Lift Plate and Holding Fixture Installation Automatic Transmission Unit

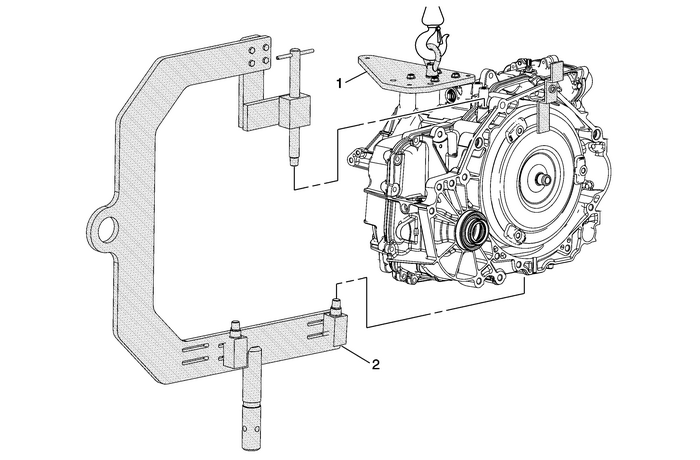

Lift Plate and Holding Fixture Installation

Callout

Component Name

1

DT-47811-ATransmission Lift Plate

Warning:Handle with care, the transmission assembly weighs over83-Kg (183-lbs). Bodily injury could occur ifnot handled properly.

Caution:Refer toFastener Caution.

Procedure

Tighten bolts and nut.

Tighten

12-Y(106-lb-in)

Special Tools

DT-47811-ATransmission Lift Plate

For equivalent regional tools, refer toSpecial Tools.

2

DT-46625Transmission Holding Fixture

ProcedureRaise the transmission with an overhead hoist.Adjust mounting block on fixture to match bosses on case,then tighten bolts.Tighten

13-Y(10-lb-ft)

Special Tools

DT-46625-10Holding Fixture Adapter

For equivalent regional tools, refer toSpecial Tools.
