Instrument Panel Cluster Trim Plate Bezel Replacement Consoles Center Console

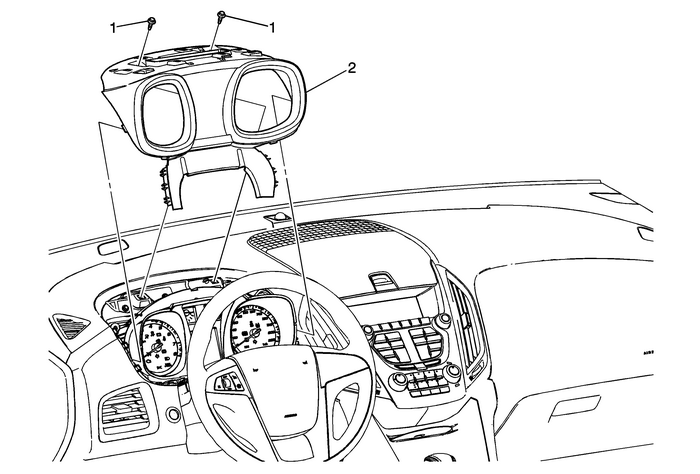

Instrument Panel Cluster Trim Plate Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel cluster trim pad. Refer toInstrument Panel Cluster Trim Pad Replacement.

1

Instrument Panel Cluster Trim Plate Bezel Fasteners(Qty:-2)

Caution:Refer toFastener Caution

Tighten

2.5-Y(22-lb-in)

2

Instrument Panel Cluster Trim Plate Bezel Assembly

ProceduresUse a flat bladed plastic trim tool in order to release theretainer tabs securing the steering column seal to the instrumentpanel lower trim pad retainer.Use a flat bladed plastic trim tool in order to disengage theretainer clips securing the instrument panel cluster trim bezel tothe instrument panel assembly.
