Instrument Panel Cluster Trim Pad Replacement Consoles Center Console

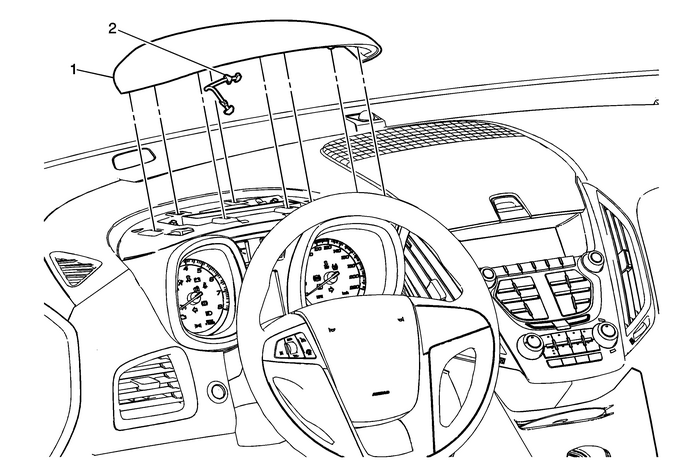

Instrument Panel Cluster Trim Pad Replacement

Callout

Component Name

1

Instrument Panel Cluster Trim Pad

ProceduresUse a flat bladed plastic trim tool in order to release theretainer clips securing the instrument panel cluster trim pad tothe instrument panel cluster trim plate bezel.Disconnect the instrument panel cluster trim padtether.

2

Instrument Panel Cluster Trim Pad Tether

Instrument Panel Center Compartment Replacement (Terrain) Consoles Center Console
Instrument Panel Center Compartment ReplacementCalloutComponent Name1Instrument Panel Center Compartment Liner2Instrument Panel Center Compartment Fasteners(Qty:-2)Caution:Refer toFastener Caution.Tig ...

Instrument Panel Cluster Trim Plate Bezel Replacement Consoles Center Console
Instrument Panel Cluster Trim Plate Bezel ReplacementCalloutComponent NamePreliminary ProcedureRemove the instrument panel cluster trim pad. Refer toInstrument Panel Cluster Trim Pad Replacement.1Inst ...

Other materials:

Manifold Absolute Pressure Sensor Replacement Engine Control Engine Control Sensors Manifold Absolute Pressure Sensor
Manifold Absolute Pressure Sensor ReplacementCalloutComponent NamePreliminary ProcedureRemove the air cleaner resonator. Refer toAir Cleaner Outlet Resonator Replacement1Manifold Absolute Pressure Sensor FastenerCaution:Refer toFastener Caution.ProcedureDisconnect the electrical connector.Tighten4-Y ...
