Hood Replacement Panels

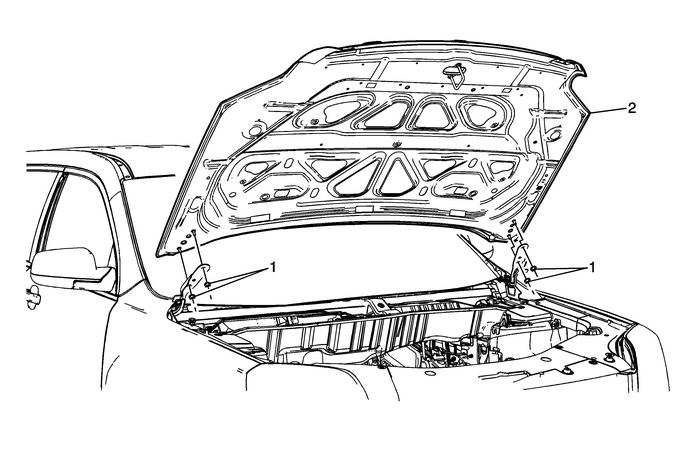

Hood Replacement

Callout

Component Name

Preliminary Procedure

Remove the hood strut rod. Refer toHood Strut Replacement.

1

Hood Hinge Nut (Qty:-4)

Caution:Refer toFastener Caution.

Procedure

Mark the location of the hinge to the hood with a greasepencil to aid in alignment.

Tighten

25-Y(18-lb-ft)

2

Hood

ProcedureAdjust the hood if necessary.Transfer parts as needed.
