Chevrolet Equinox Owners Manual: Headlamps

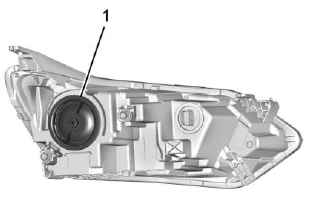

Driver Side Shown, Passenger Side Similar
Driver Side Shown, Passenger Side Similar

  1. Headlamp

To replace one of the headlamp bulbs:

  1.  Open the hood. See Hood.
  2.  For the driver side bulb, remove the battery cover.

    Remove the windshield washer bottle filler neck by firmly pulling it straight up and out of the bottle.

    For the passenger side, remove the air cleaner cover.

  3.  Remove the cover from the back of the headlamp assembly by turning it counterclockwise.
  4.  Disconnect the electrical connector.
  5.  Remove the bulb from the lamp assembly by turning counterclockwise.
  6.  Install a new bulb in the lamp assembly.
  7.  Connect the electrical connector.
  8.  Replace the cover from the back of the headlamp assembly by turning it clockwise.
  9. For the driver side, reinstall the battery cover. Reinstall the windshield washer bottle filler neck by firmly pushing it straight into the bottle. Make sure that the filler neck clip engages into the bracket on the upper tie-bar.

    For the passenger side, reinstall the air cleaner cover.
