Fuel Tank Filler Pipe Replacement Engine Control

Fuel Tank Filler Pipe Replacement

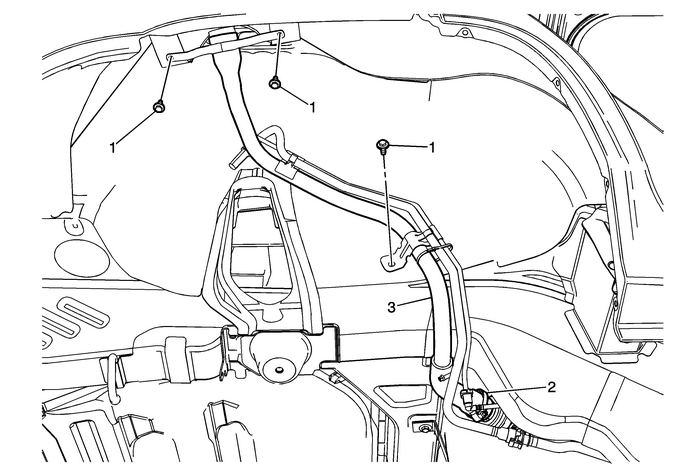

Callout

Component Name

Preliminary ProcedureRemove the rear wheel house liner. Refer toRear Wheelhouse Liner Replacement.Disconnect the evaporative emission lines. Refer toPlastic Collar Quick Connect Fitting Service.

1

Filler Pipe Fastener (Qty: 3)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Fuel Tank Filler Pipe Clamp

Tighten

4-Y(35-lb-in)

3

Fuel Tank Filler Pipe
