Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail Engine Control Engine Control Sensors

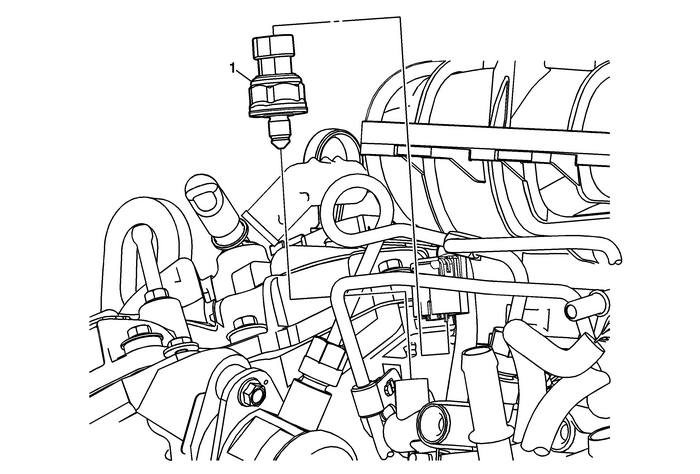

Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail

Callout

Component Name

Preliminary Procedure

Remove the fuel pipe shield. Refer toFuel Pipe Shield Replacement.

1

Fuel Injection Fuel Rail Fuel Pressure Sensor

Caution:Refer toFastener Caution.

Tighten

33-Y(25-lb-ft)
