Fuel Pressure Sensor Replacement - Fuel Feed Pipe Engine Control Engine Control Sensors

Fuel Pressure Sensor Replacement - Fuel Feed Pipe

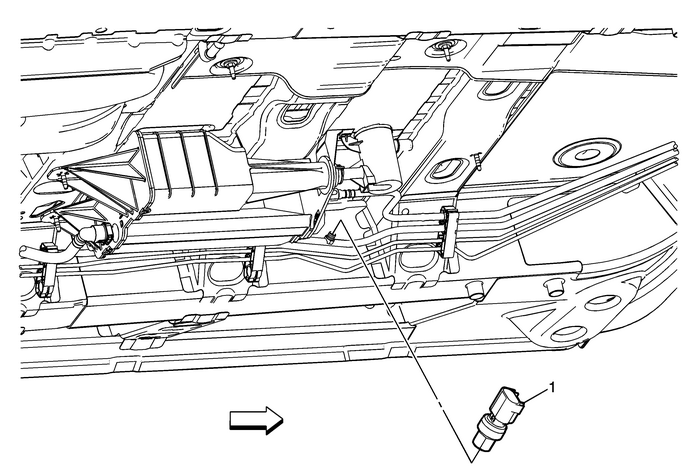

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Fuel Pressure Sensor

Caution:Refer toFastener Caution.

ProcedureDisconnect the electrical connector.Do not reuse the fuel pressure sensor O-ring seal. Lubricatethe NEW fuel pressure sensor O-ring seal with clean engineoil.Tighten

9-Y(80-lb-in)

Fuel Pipe Shield Replacement Engine Control
Fuel Pipe Shield ReplacementCalloutComponent NamePreliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.1BoltCaution:Refer toFastener Caution.Tighten10-Y (89- ...

Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail Engine Control Engine Control Sensors
Fuel Pressure Sensor Replacement - Fuel Injection Fuel RailCalloutComponent NamePreliminary ProcedureRemove the fuel pipe shield. Refer toFuel Pipe Shield Replacement.1Fuel Injection Fuel Rail Fuel Pr ...
