Front Side Door Lower Molding Replacement (Terrain) Doors

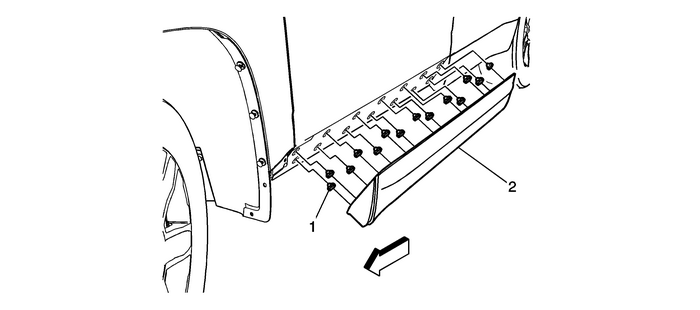

Front Side Door Lower Molding Replacement

Callout

Component Name

Preliminary ProceduresOpen the front door in order to access the front side doorlower molding sealing strip.Using a trim-type tool, release the lower retainers followedby the upper retainers.

1

Front Side Door Lower Molding Retainer(Qty:-14)

2

Front Side Door Lower Molding

Front or Rear Side Door Lower Weatherstrip Replacement Doors
Front or Rear Side Door Lower Weatherstrip ReplacementCalloutComponent Name1Front and Rear Door Lower Weatherstrip Retainer(Qty:-17)ProceduresOpen both side doors on the side the weatherstrip is being ...

Front Side Door Lower Molding Replacement Doors
Front Side Door Lower Molding ReplacementCalloutComponent NamePreliminary ProceduresOpen the front door in order to access the lower moldingretainers first.Using a trim-type tool, release the lower re ...
