Front Side Door Lock Cylinder Replacement Locks Mechanical Locks

Front Side Door Lock Cylinder Replacement

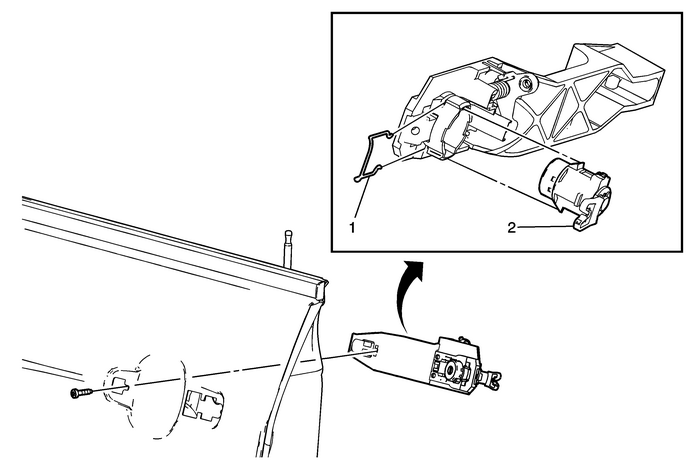

Callout

Component Name

Preliminary Procedures

Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.

1

Front Side Door Lock Cylinder Clip

ProceduresIt is not necessary to remove the outside door handle orhousing to replace the cylinder.Remove the water deflector.Do Not remove the outside handle cylinder cap from theoutside door handle.Remove the access plug located on the inner door.Disconnect the lock rod from the cylinder.Pull the lock cylinder clip.

Tip:Use a flat-bladed tool to remove the clip.

2

Front Side Door Lock Cylinder

Procedure

Inspect the door for proper operation before installing thedoor trim panel.

Tip:Pull the lock cylinder from the housing.
