Front Side Door Check Link Replacement Panels

Front Side Door Check Link Replacement

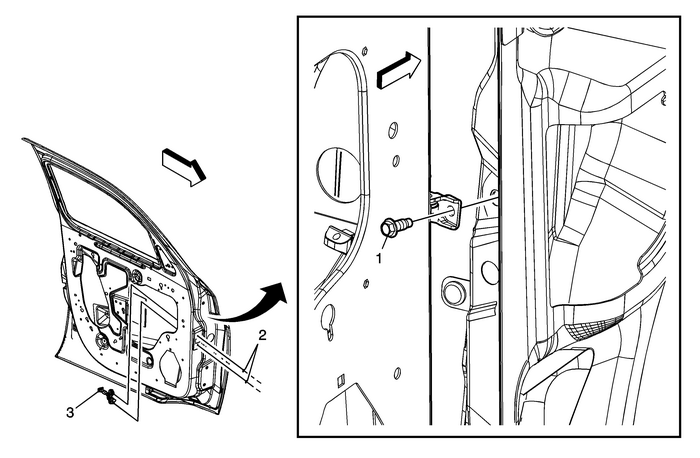

Callout

Component Name

Preliminary Procedures

Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.

1

Front Side Door Check Link Bolt

Caution:Refer toFastener Caution.

ProcedureMove the window to the full up position.Remove the front door water deflector.Tighten

25-Y(18-lb-ft)

2

Front Side Door Check Link Nut (Qty:-2)

Tighten

10-Y(89-lb-in)

3

Front Side Door Check Link Assembly

Tip:Remove the check link through the opening of the door.
