Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain) Consoles Center Console

Front Floor Lower Console Side Finish Cover Replacement - Right Side

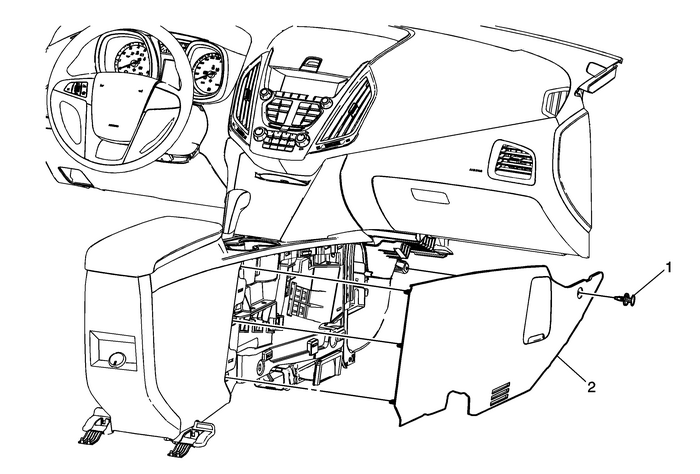

Callout

Component Name

Preliminary Procedure

Move the right front seat to the full rearwardposition.

1

Push Pin Fastener

2

Front Floor Lower Console Side Finish Cover - Right

Procedure

Grasp the side finish cover and pull outward releasing theretainer clips securing the side finish panel to the consoleassembly.

Front Floor Lower Console Side Finish Cover Replacement - Left Side (Terrain) Consoles Center Console
Front Floor Lower Console Side Finish Cover Replacement - Left SideCalloutComponent NamePreliminary ProcedureMove the left front seat to the full rearwardposition.1Push Pin Fastener2Front Floor Lower ...
