Front Floor Console Armrest Compartment Lamp Replacement Consoles Center Console

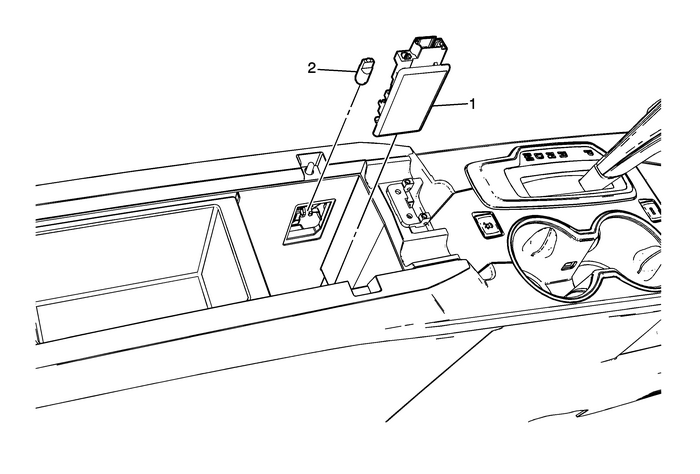

Front Floor Console Armrest Compartment Lamp Replacement

Callout

Component Name

1

Front Floor Console Armrest Compartment Lamp

ProcedureOpen arm rest and using the appropriate tool, release thebottom of the lamp.Pull lamp downward to remove.Guide switch button through hole in the console.Disconnect the electrical connector.

2

Front Floor Console Armrest Compartment Lamp Bulb

Front Floor Console Accessory Trim Plate Replacement Consoles Center Console
Front Floor Console Accessory Trim Plate ReplacementCalloutComponent NamePreliminary ProcedureRemove the front floor console. Refer toFront Floor Console Replacement.Remove front floor console transmi ...

Front Floor Console Armrest Replacement Consoles Center Console
Front Floor Console Armrest ReplacementCalloutComponent Name1Front Floor Console Rear CoverRefer toFront Floor Console Rear Cover Replacement.2Front Floor Console Armrest Fasteners(Qty:-4)Caution:Refe ...

Other materials:

Automatic Transmission Shift Lock Control Function Check Transmission Control Shift Interlock
Warning:When you are doing this inspection, the vehicle could movesuddenly. If the vehicle moves, you or others could beinjured.Before starting this check, be sure there is enough room around the vehicle. It shouldbe parked on a level surface.Apply the parking brake. Be ready to apply the regular br ...
