Front Floor Console Accessory Trim Plate Replacement Consoles Center Console

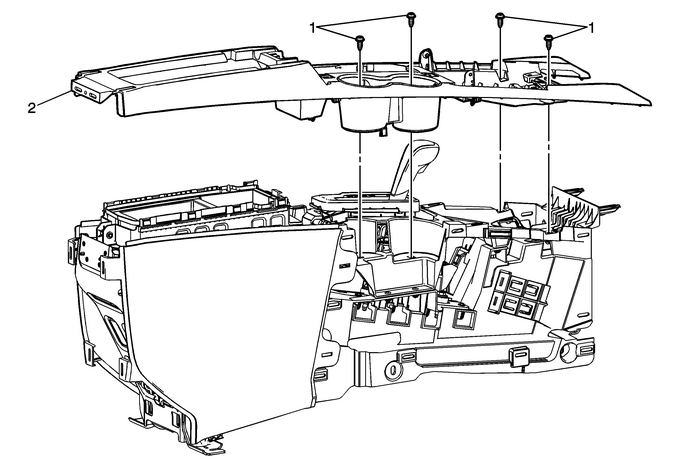

Front Floor Console Accessory Trim Plate Replacement

Callout

Component Name

Preliminary ProcedureRemove the front floor console. Refer toFront Floor Console Replacement.Remove front floor console transmission shift opening trimplate. Refer toFront Floor Console Transmission Shift Opening Trim Plate Replacement.Remove the front floor console rear cover. Refer toFront Floor Console Rear Cover Replacement.Remove the front floor console armrest. Refer toFront Floor Console Armrest Replacement.Remove the cupholder liner.

1

Front Floor Console Accessory Trim Plate Fasteners(Qty:-4)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Front Floor Console Accessory Trim Plate

ProceduresGrasp the front floor console accessory trim plate and liftupward disengaing the retainer clips securing the trim plate to theconsole assembly.Disconnect the electrical connections.When replacing the front floor console accessory trim plate,transfer all neccessary components.
