Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side Automatic Transmission Unit

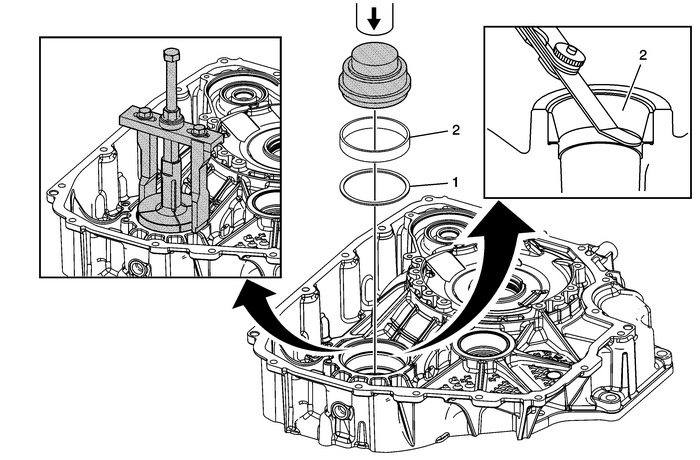

Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter HousingSide

Callout

Component Name

Preliminary ProceduresDo not install the bearing cup until after the selective washer measurement has beenperformed.Install the correct differential bearing washer as determined by the thrust washermeasurement procedure. Refer toFront Differential Drive Pinion Gear Bearing Thrust Washer and Front DifferentialBearing Washer Measurement.

1

Front Differential Bearing Thrust Washer

2

Front Differential Carrier Bearing Cup

Caution:Support the back side of the torque converter housing beforeinstalling the bearing cup. Apply a light coating of transmissionfluid to the bore before pressing the cup into position. Installthe bearing cup until it stops moving. Applying excessive pressureto the bearing cup once it is seated could cause damage to thetorque converter housing casting.

Caution:An unseated or improperly installed bearing cup will resultin premature bearing failure. Visually inspect the bearing cup toinsure there is“no gap” between the converterhousing, thrust washer, and the bearing cup. Use of a feeler gaugemay assist in identifying a bearing cup that is not fullyseated.

Caution:Failure to apply the lubricant will cause damage to the boltand nut threads.

Caution:There are first and second design front differential bearing cups. First design bearingcups are manufactured by Timken. Second design bearing cups are manufactured by NSK.Second design bearing cups require DT-45087-A cup installer. If installing seconddesign bearing cups, second design front differential carrier bearings must be used.All four parts must be kept as a set to prevent damage to the transmission.

ProcedureTighten DT-47927-1 which is part of DT-47927 bearing cup remover until it fits snugly on the bearing cup.Adjust DT 45124 remover bridge so it sits on the torque converter housing surface just beyond the bearing cup opening.Apply the extreme pressure lubricant supplied with DT 23444-A extreme press lubricant to the puller bolt threads to prevent damage to the bolt threads during bearing cupremoval.Hold the puller bridge bolt and turn the nut to remove the bearing cup.Special ToolsDT 23444-A Extreme Press Lubricant-–-1/4 Ounce TubeDT-45087 Bearing Cup InstallerDT-45087-A Bearing Cup InstallerDT 45124 Remover BridgeDT-47927 Bearing Cup Remover

For equivalent regional tools, refer toSpecial Tools.
